Scantool Diagnostics

Electronic Stability Control
C1112 Sensor source voltage - Scantool Diagnostics:_:Monitor Scantool Data

Monitor GDS Data

1. Connect GDS to Data Link Connector(DLC).
2. IG "ON".
3. Monitor the "BATTERY VOLTAGE" parameter on the GDS.

Specification :BATTERY VOLTAGE (Approx. 10V ~ 16V)




Fig 1) Normal Data at IG "ON"

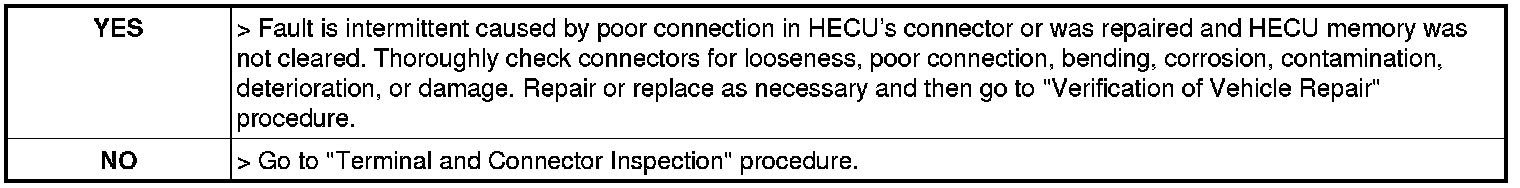

4. Is parameter displayed within specifications?
