General Information

Electronic Stability Control
C1112 Sensor source voltage - General Information

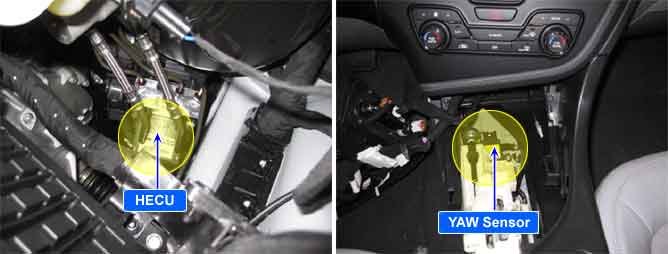

Component Location





General Description

The HECU supplies operating voltage to the Steering Angle Senor (12V), Yaw rate & Lateral G sensor (12V), and the G sensor (5V).
The HECU monitors the supply voltage to each sensor.
If supply voltage is out of specified range ABS/ESC warning lamps are turned on and ABS/ESC controls are inhibited.

DTC Description

A failure is detected if the voltage supplied to each sensor is outside the specified range for more than the specified minimum fault duration.

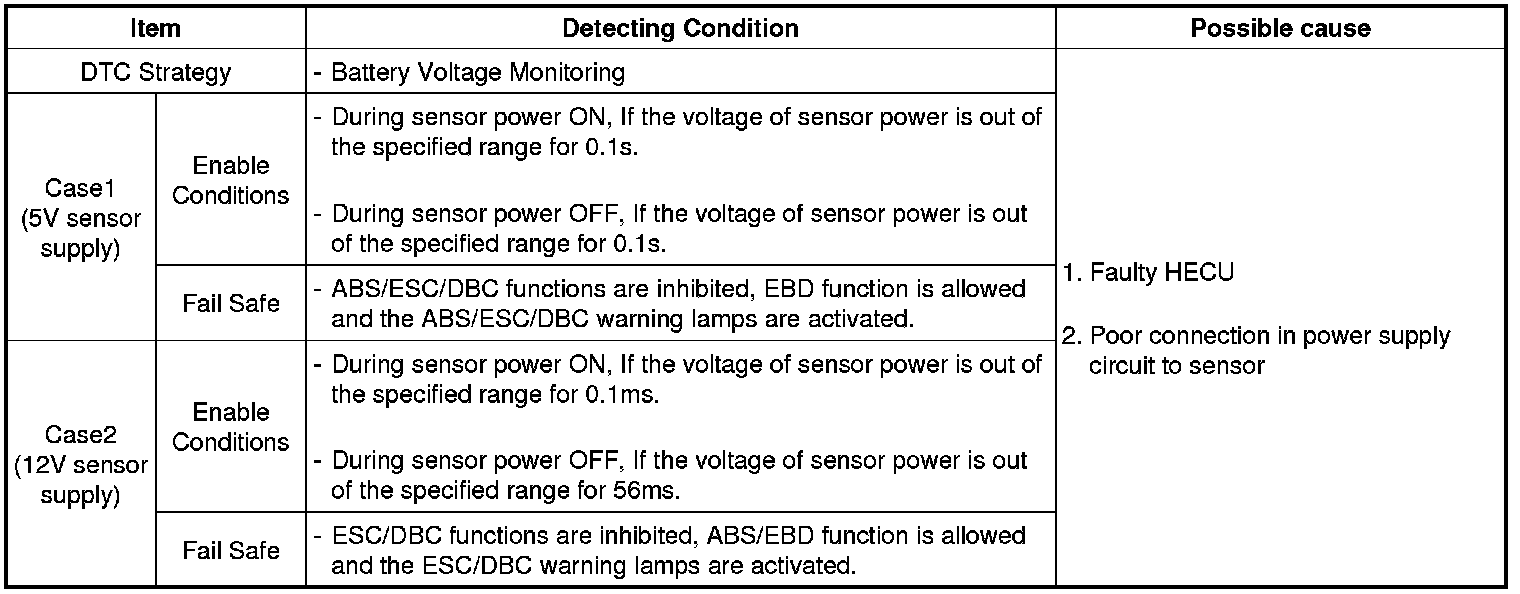

DTC Detecting Condition

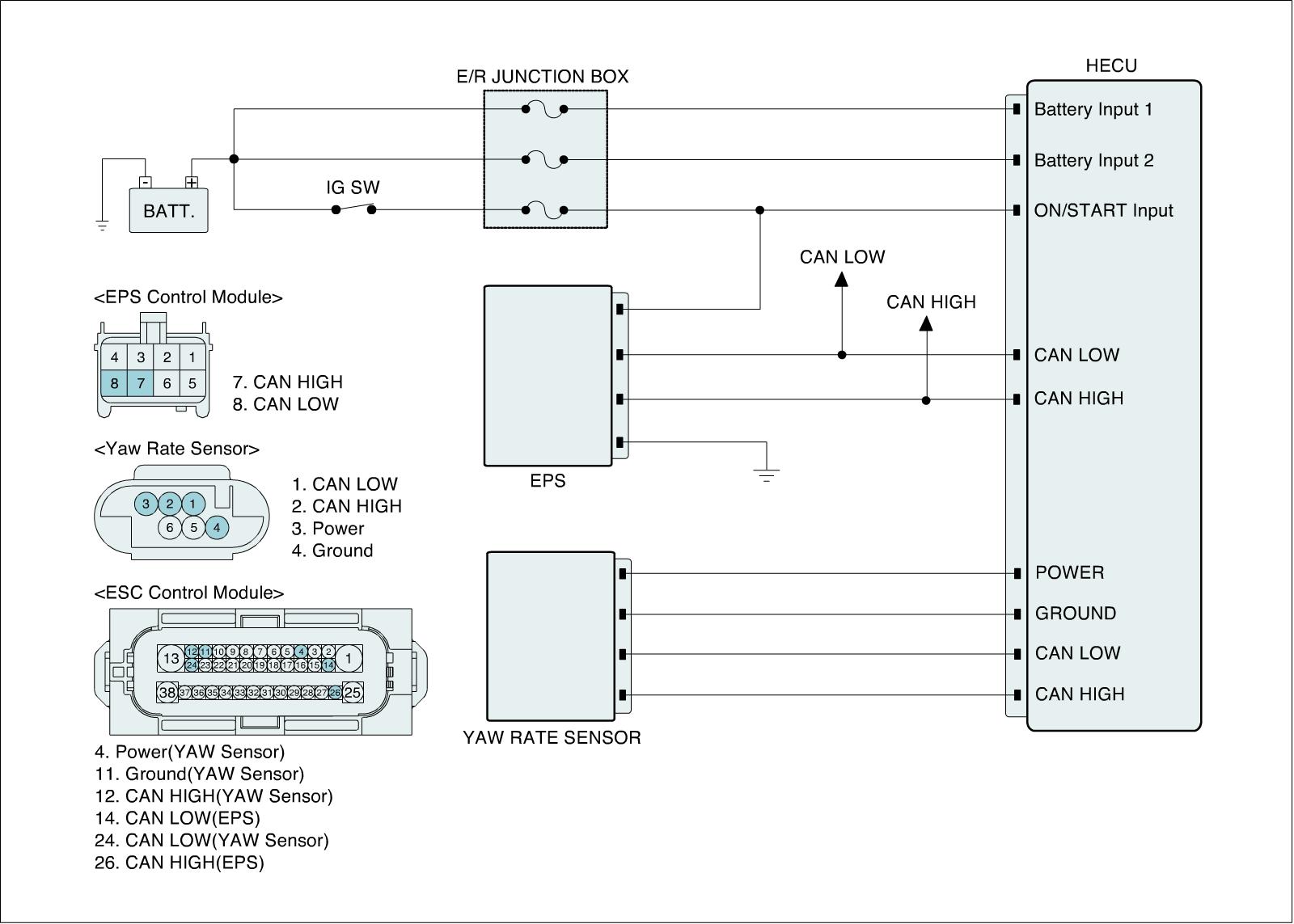

Diagnostic Circuit Diagram
