W/Harness Inspection

Power Steering
C1109 Ignition Voltage Fault - Inspection/Repair:_:W/Harness Inspection

Terminal and Connector Inspection

1. Many malfunctions in the electrical system are caused by poor harness and terminals.
Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
2. Thoroughly check all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
3. Has a problem been found?






Power Circuit Inspection

Open or Short Check
1. Ignition "OFF"
2. Disconnect EPS CM connector.
3. Ignition "ON" & Engine "OFF".

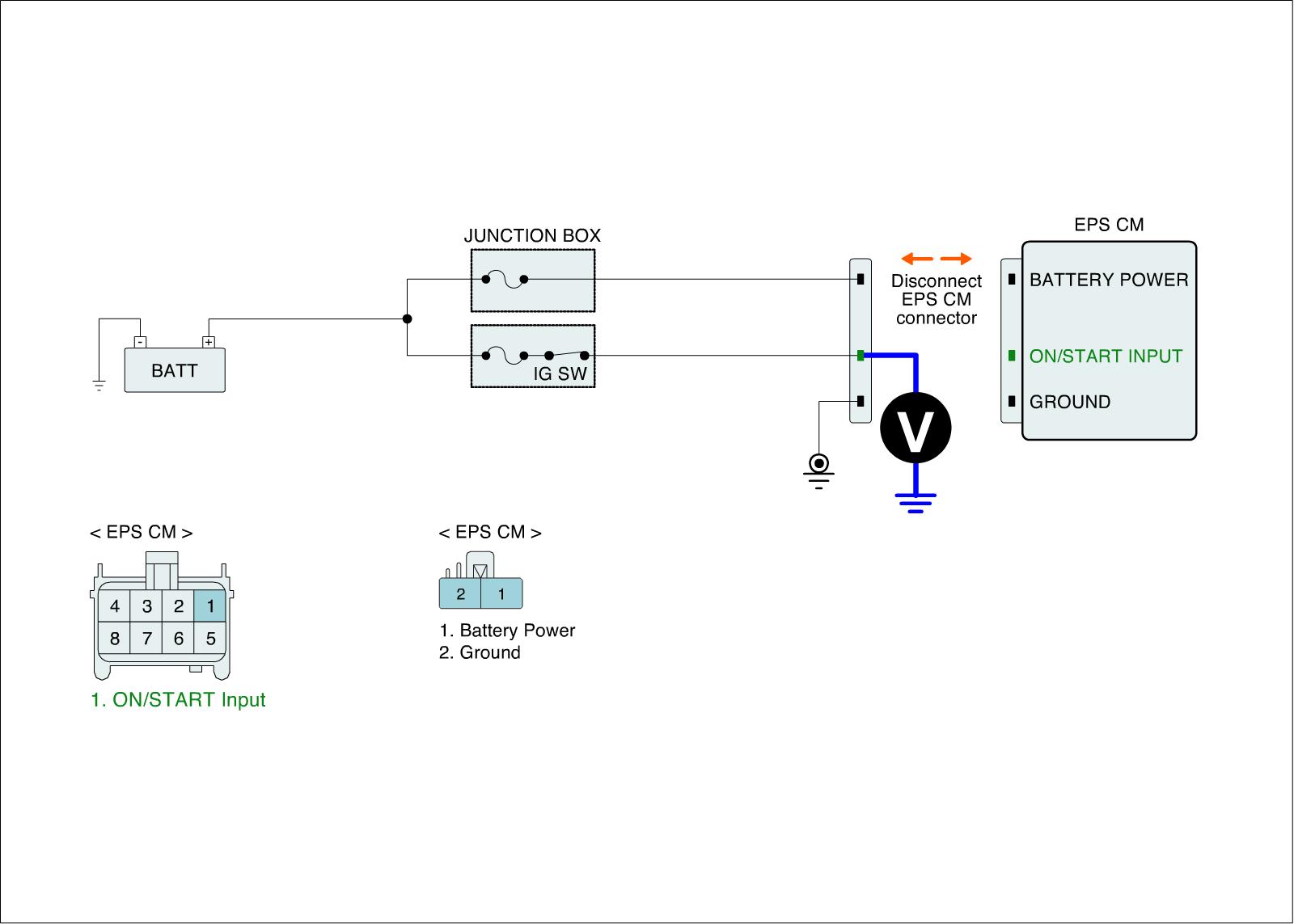

4. Measure voltage between ON/START INPUT terminal of EPS CM harness connector and chassis ground.

Specification :Battery Voltage

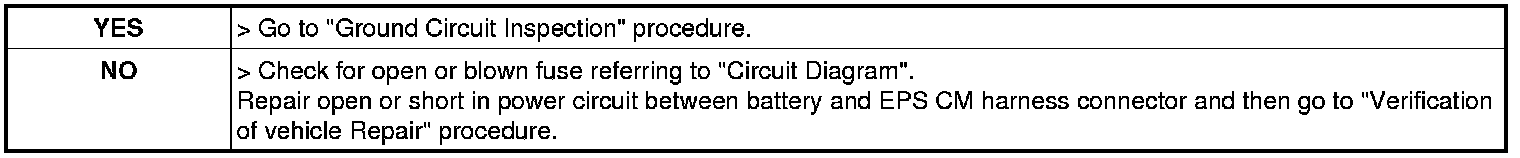

5. Is the measured voltage within specifications?






Ground Circuit Inspection

Open or Short Check
1. Ignition "OFF".
2. Disconnect EPS CM connector.

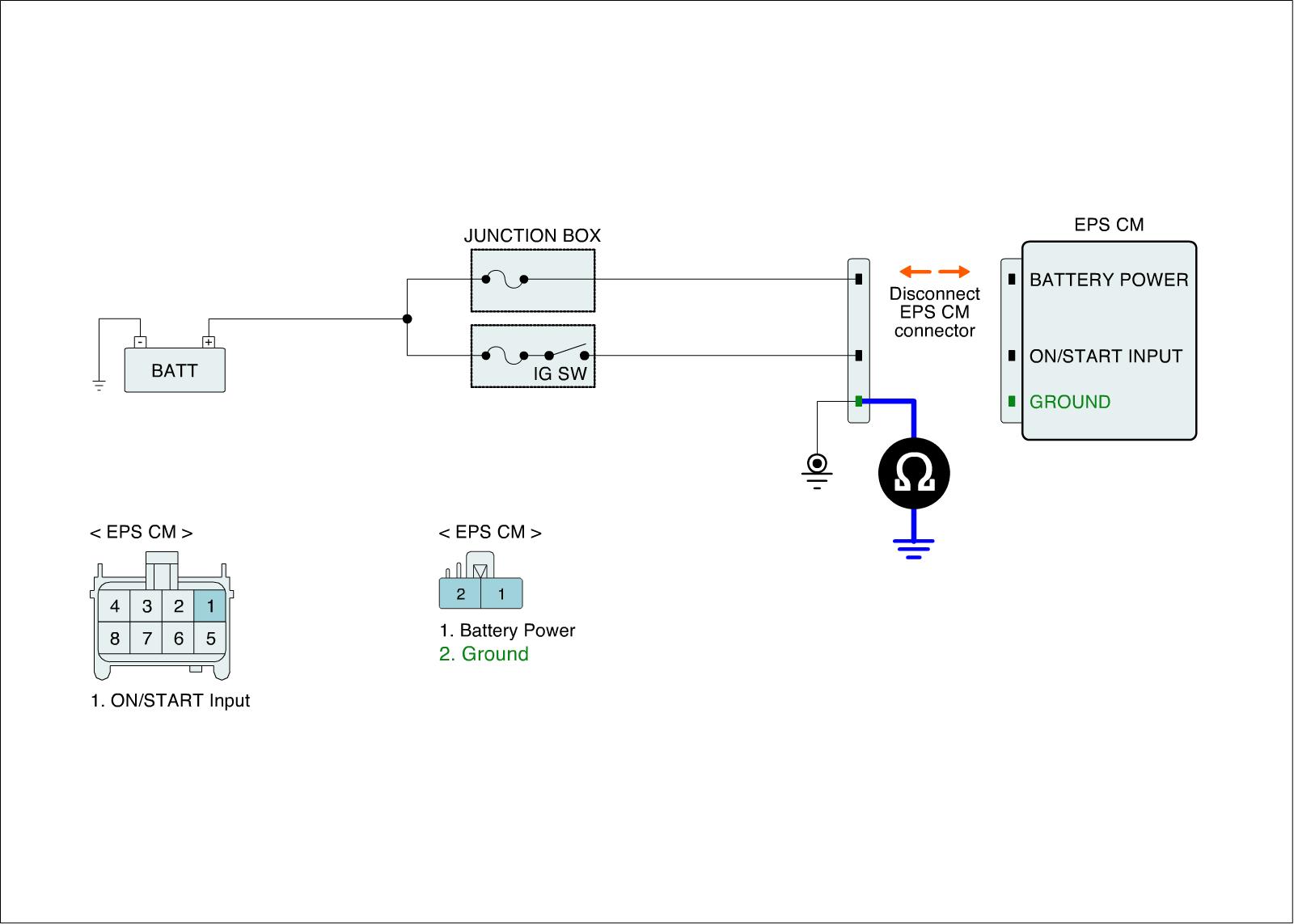

3. Measure resistance between ground terminal of EPS CM harness connector and chassis ground.

Specification :Approx. 1.0 Ohms

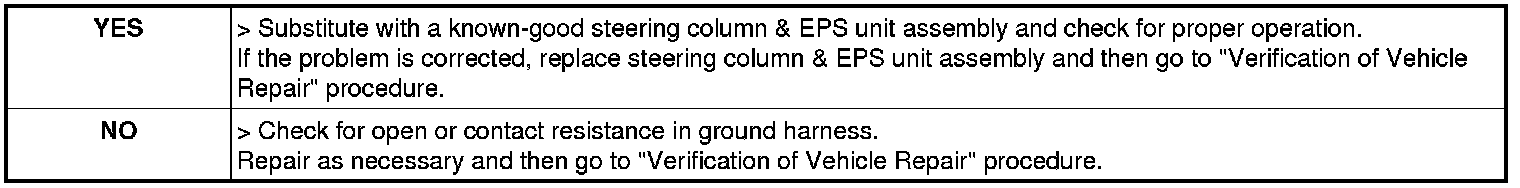

4. Is the measured resistance within specifications?
