Scantool Diagnostics

Power Steering
C1109 Ignition Voltage Fault - Scantool Diagnostics

Monitor Scantool Data

1. Connect scantool to Data Link Connector(DLC).
2. Start engine and turn the headight and the heatwire on.
3. Monitor the "BATTERY VOLTAGE" parameter on the scantool.
4. Maintaining ENG. RPM at 2,500RPM(idle) over 2 minutes.

Specification :Battery Voltage

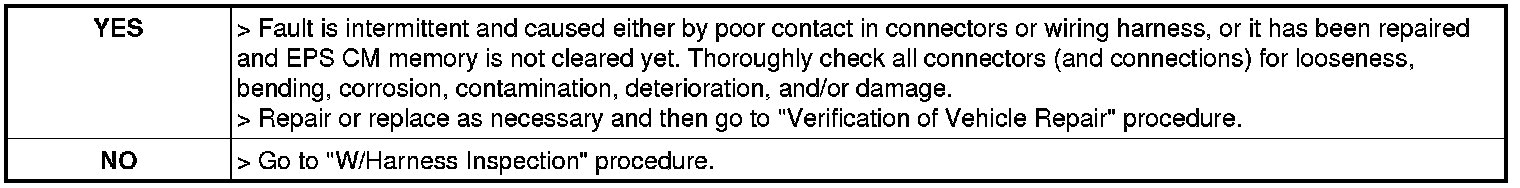

5. Is parameter within specifications?
