Scantool Diagnostics

Power Steering
C1102 Battery Voltage Low - Scantool Diagnosis:_:Monitor Scantool Data

Monitor Scantool Data

1. Connect scantool to Data Link Connector(DLC).
2. Start engine and turn the headight and the heatwire on.
3. Monitor the "BATTERY VOLTAGE" parameter on the scantool.
4. Maintaining ENG. RPM at 2,500RPM(idle) over 2 minutes.

Specification :more than 10 [V]

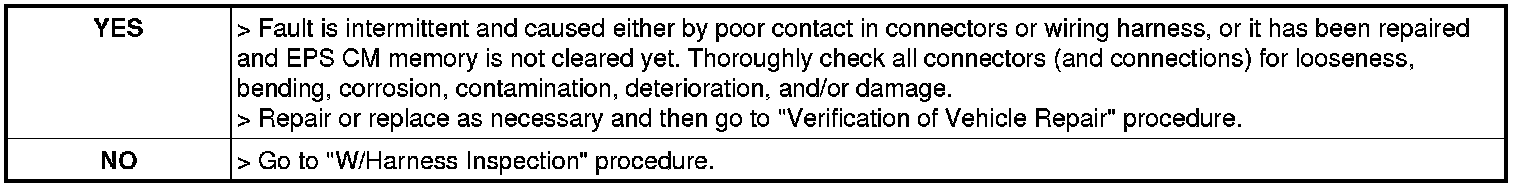

5. Is parameter within specifications?
