General Information

Power Steering
C1102 Battery Voltage Low - General Information

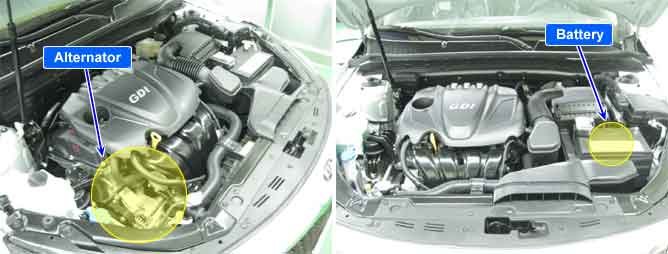

Component Location





General Description

EPS(MDPS=Motor Driving Power Steering) CM monitors that operating voltage supplied as IG S/W is too high or too low on "power supply terminal". If excessive high voltage or low voltage is detected, EPS CM(Control Module) stops current supply to solenoid to prevent unexpected operation or damage.

DTC Description

EPS(MDPS=Motor Driving Power Steering) CM(Control Module) sets this code and turns on warning lamp if excessive low voltage caused by faulty alternator or poor connention in power supply circuit is detected.

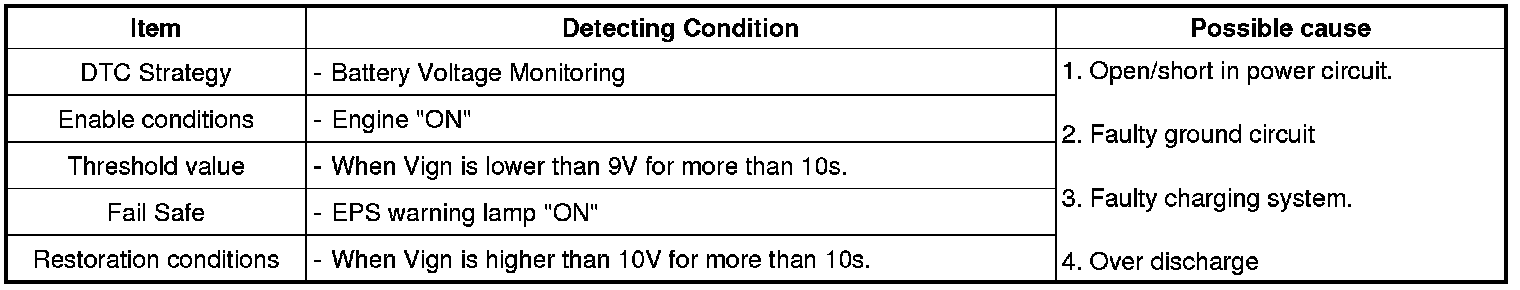

DTC Detecting Condition





Specification





Diagnostic Circuit Diagram
