W/Harness Inspection

Electronic Stability Control
C1102 Battery Voltage Low - Inspection/Repair:_:W/Harness Inspection

Terminal and Connector Inspection

1. Many malfunctions in the electrical system are caused by poor harness(es) and terminals. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
3. Has a problem been found?






Alternator Output Voltage Inspection

Charging System Check
1. IG "ON" & ENG "ON".
2. Maintain ENG RPM 2,500RPM over 2 minutes.
3. Measure voltage between the battery terminal(+) and the battery terminal(-).

Specification :Above. 9±0.5V

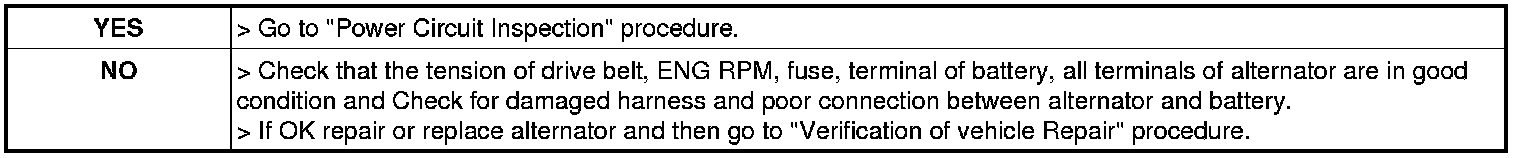

4. Is the measured value within specifications?






Power Circuit Inspection

Open or Short Check
1. IG "ON".
2. Measure voltage between the battery terminal(+) and power terminal of the HECU harness connector.

Specification :Approx. below 0.2V

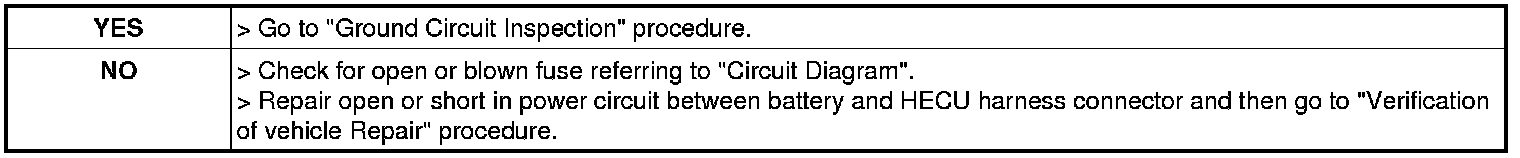

3. Is the measured value within specifications?






Ground Circuit inspection

Open or Short Check
1. IG "ON".
2. Disconnect HECU connector.
3. Measure resistance between ground terminal of the HECU harness connector and chassis ground.

Specification :Approx. below 1Ohms

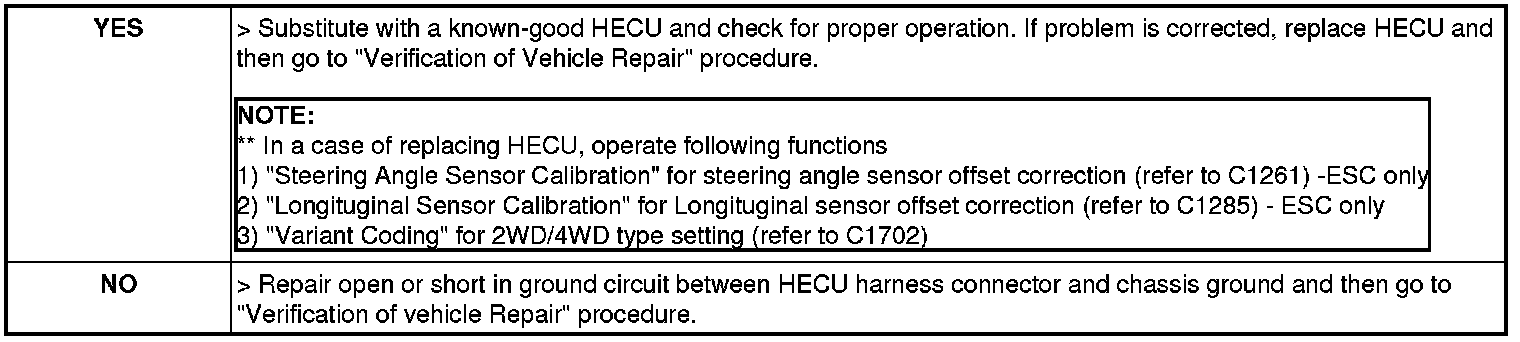

4. Is the measured value within specifications?
