Scantool Diagnostics

Electronic Stability Control
C1102 Battery Voltage Low - Scantool Diagnostics:_:Monitor Scantool Data

Monitor GDS Data

1. Connect GDS to Data Link Connector(DLC).
2. IG "ON".
3. Monitor the "BATTERY VOLTAGE" parameter on the GDS.

Specification :Above. 9±0.5V




Fig 1) Normal Data at IG "ON"

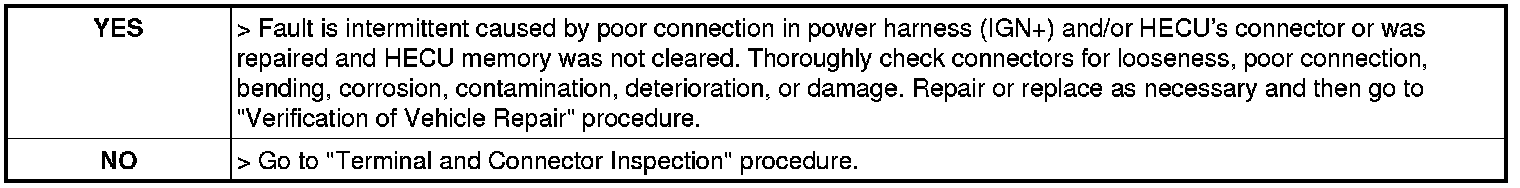

4. Is parameter displayed within specifications?
