C1101 Battery Voltage High - Inspection/Repair:_:W/Harness Inspection

Terminal and Connector Inspection

1. Many malfunctions in the electrical system are caused by poor harness and terminals.
Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
2. Thoroughly check all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
3. Has a problem been found?






Charging System Inspection

1. Engine "ON"
2. headight and heatwire "ON".
3. Measure voltage between terminal (+) and (-) of battery while maintaining ENG RPM 2,500RPM over 2 minutes.

Specification :Less than 17 [V]

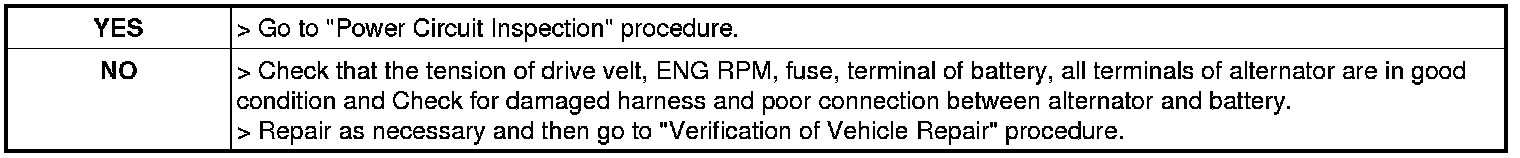

4. Is the measured voltage within specifications?






Power Circuit Inspection

Open or Short Check
1. Ignition "OFF"
2. Disconnect EPS CM connector.
3. Engine "ON", headight and heatwire "ON".
4. Measure voltage between battery power terminal of EPS CM harness connector and chassis ground maintaining ENG. RPM at 2,500RPM(idle) over 2 minutes.

Specification :less than 17 [V]

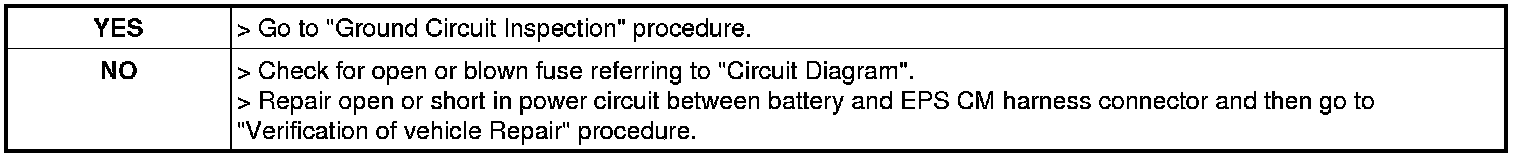

5. Is the measured voltage within specifications?






Ground Circuit Inspection

Open or Short Check
1. Ignition "OFF".
2. Disconnect EPS CM connector.
3. Measure resistance between ground terminal of EPS CM harness connector and chassis ground.

Specification :Approx. 1.0 Ohms




4. Is the measured resistance within specifications?
