General Information

Power Steering
C1101 Battery Voltage High - General Information

Component Location





General Description

EPS(MDPS=Motor Driving Power Steering) Control Module monitors that operating voltage supplied to the "power supply terminal". If excessive high or low voltage is detected, the EPS CM (Control Module) stops the current supply to the solenoid to prevent unexpected operation or damage.

DTC Description

EPS (MDPS=Motor Driving Power Steering) sets this code if high voltage caused by faulty alternator or poor connention in power supply circuit is detected.

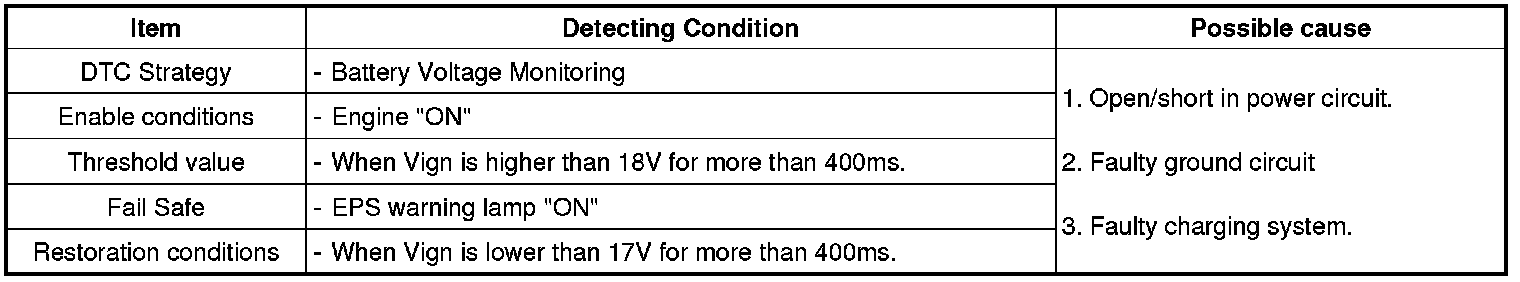

DTC Detecting Condition





Specification





Diagnostic Circuit Diagram
