General Information

Electronic Stability Control
C1101 Battery Voltage High - General Information

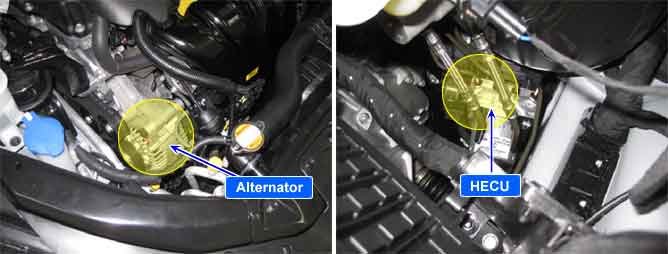

Component Location





General Description

The ABS ECU(Electronic Control Unit) monitors the system (battery) voltage. The normal system voltage range is essential for controlling the ABS system as intended.

DTC Description

When the voltage is higher than the expected normal value, this code is set, and the ABS/EBD/ESC/DBC functions are prohibited.
If the voltage recovers to within normal operating range, then the controller returns to normal operation as well.

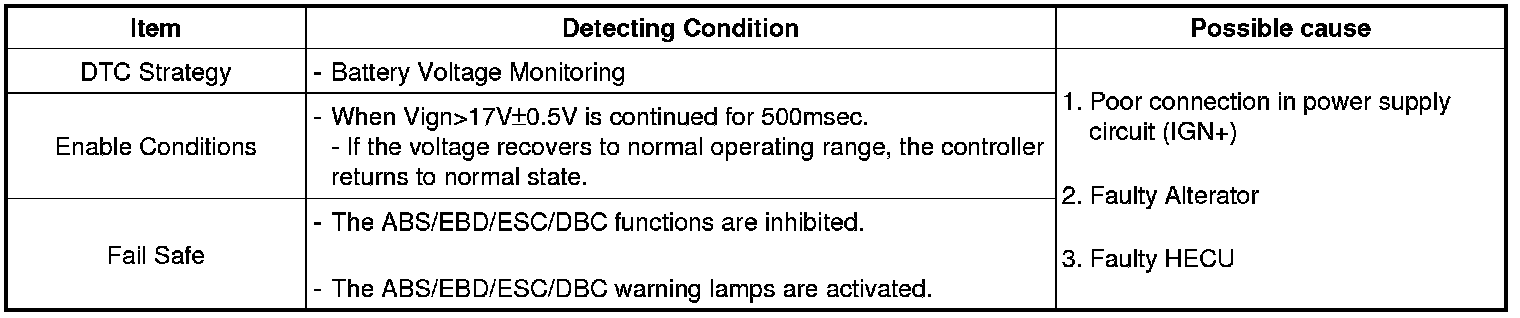

DTC Detecting Condition





Specification

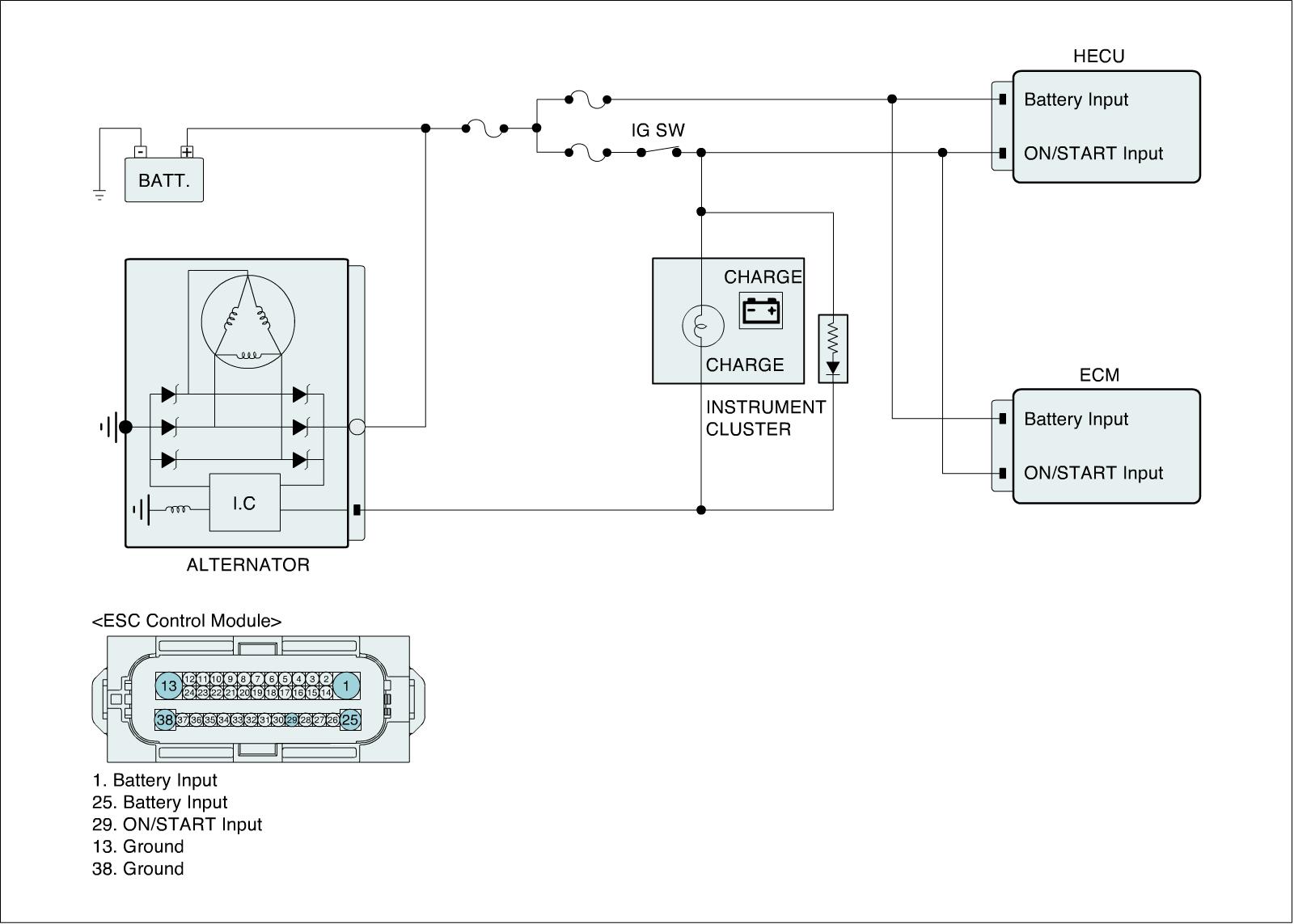

Diagnostic Circuit Diagram
