W/Harness Inspection

Smart Junction Box
B2525 Turn Signal RH Rear Circuit Short to Ground - Inspection/Repair:_:W/Harness Inspection

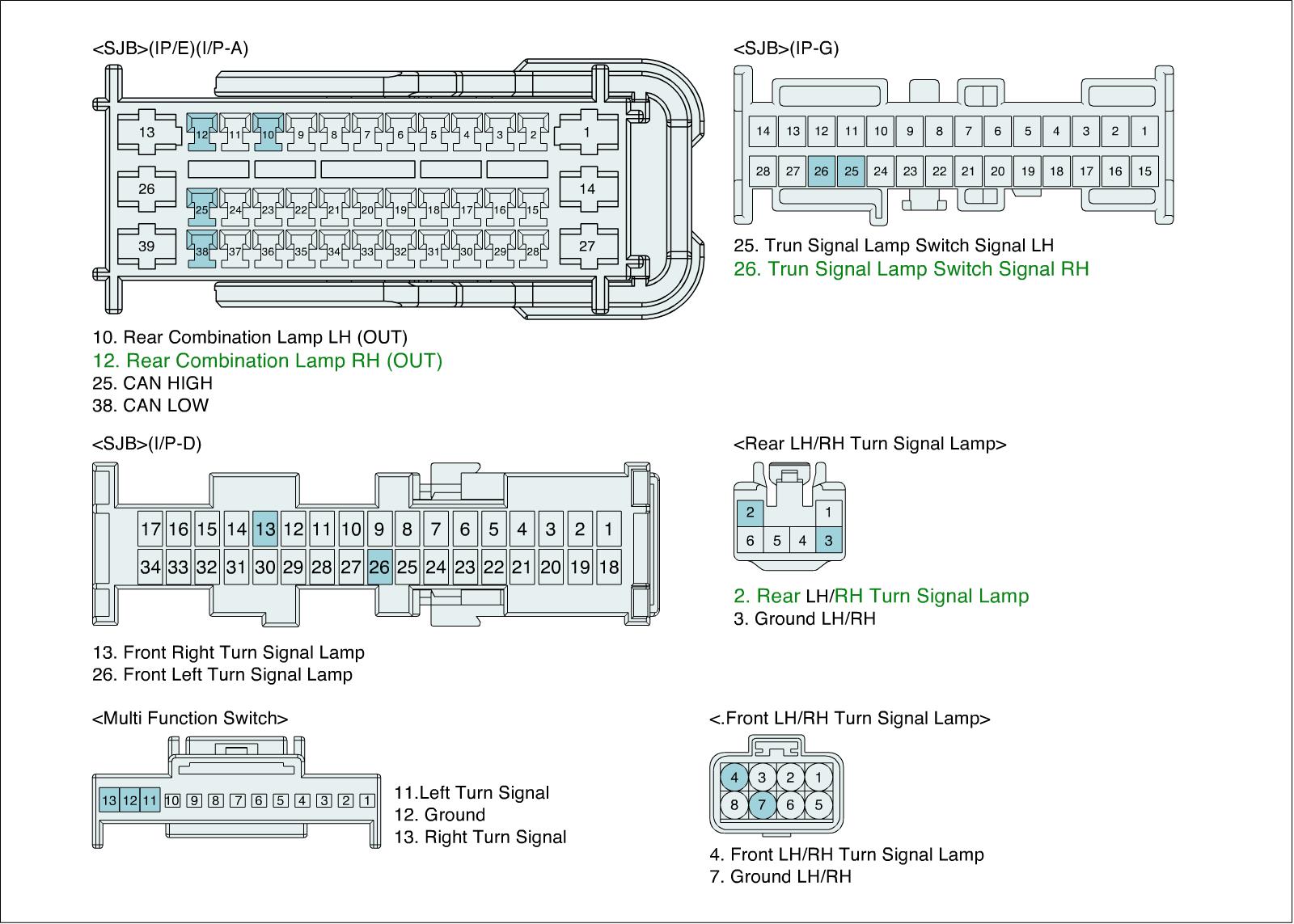

Terminal & Connector Inspection

1. Many malfunctions in the electrical system are caused by poor harness(es) and terminals. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
3. Has a problem been found?






Rear Right Turn Signal Lamp Circuit Inspection

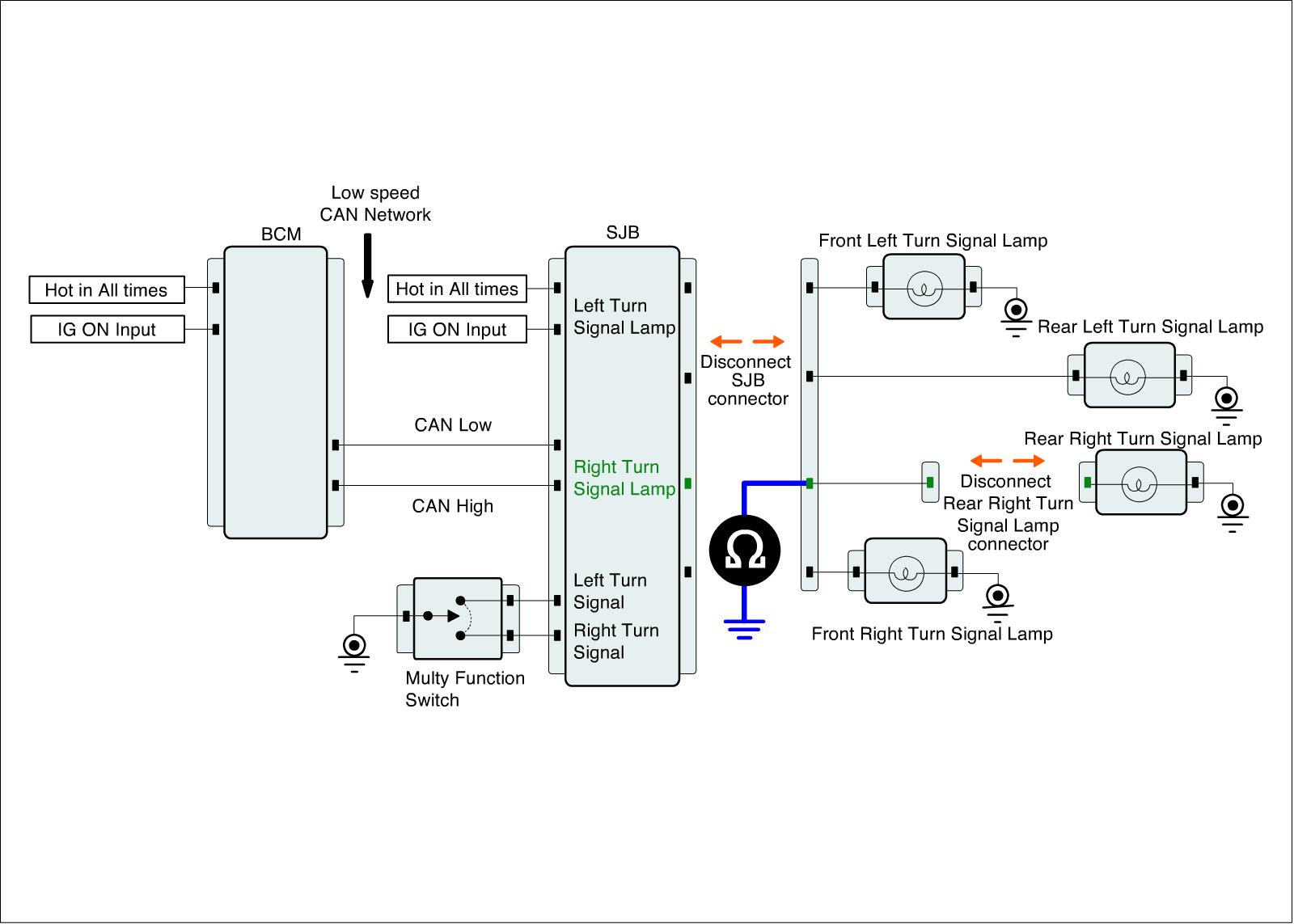

Check short to ground in harness
1. IG "OFF", disconnect battery (-) terminal.
2. Disconnect SJB, Rear Right Turn Signal Lamp connector.
3. Measure resistance between the Rear Right turn signal lamp terminal of SJB harness connector and chassis ground.

Specification :Infinity

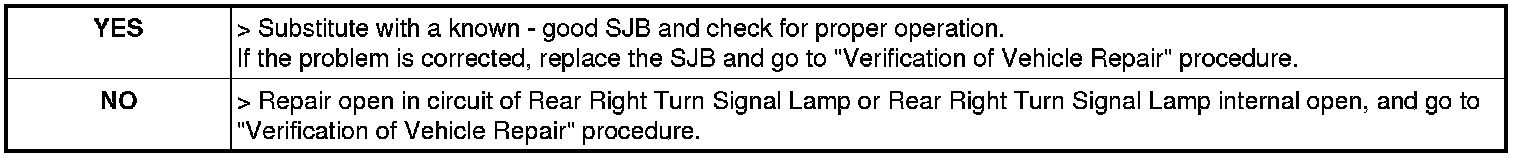

4. Is the measured resistance within specification?
