B2524 Turn Signal RH Front Circuit Short to Ground - Inspection/Repair:_:W/Harness Inspection

Terminal & Connector Inspection

1. Many malfunctions in the electrical system are caused by poor harness(es) and terminals. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.

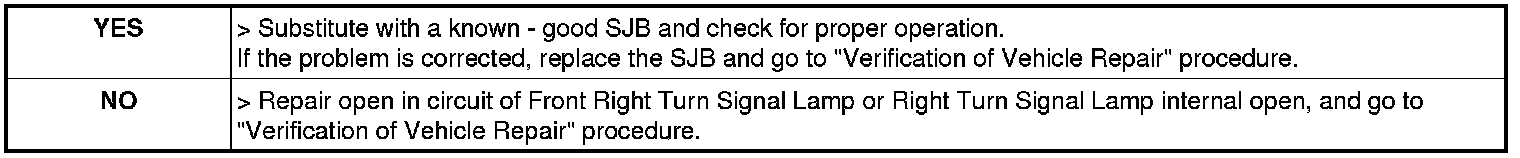

3. Has a problem been found?






Front Right Turn Signal Lamp Circuit Inspection

Check short to ground in harness
1. IG "OFF", disconnect battery (-) terminal.

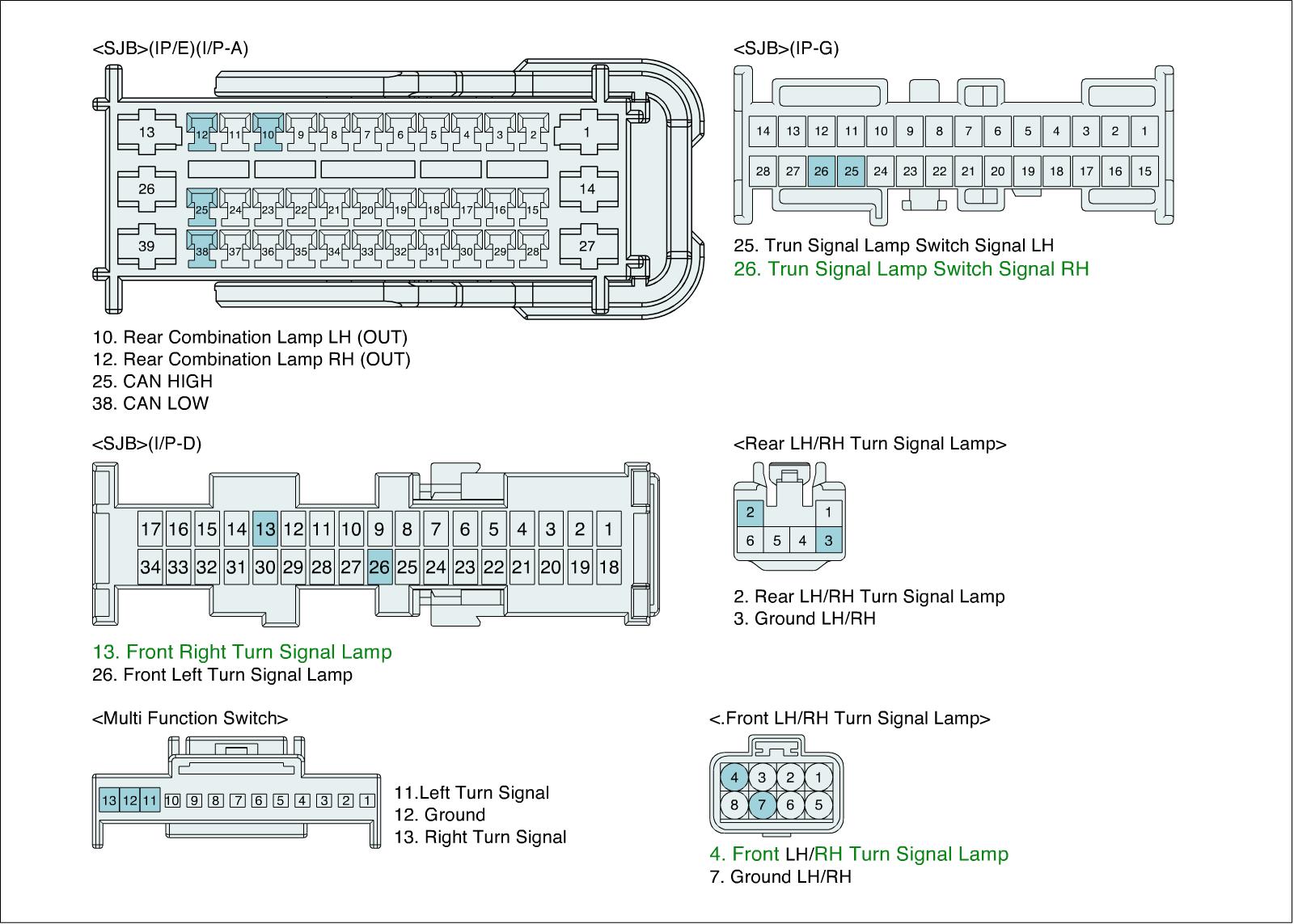

2. Disconnect SJB, Front Right Turn Signal Lamp connector.

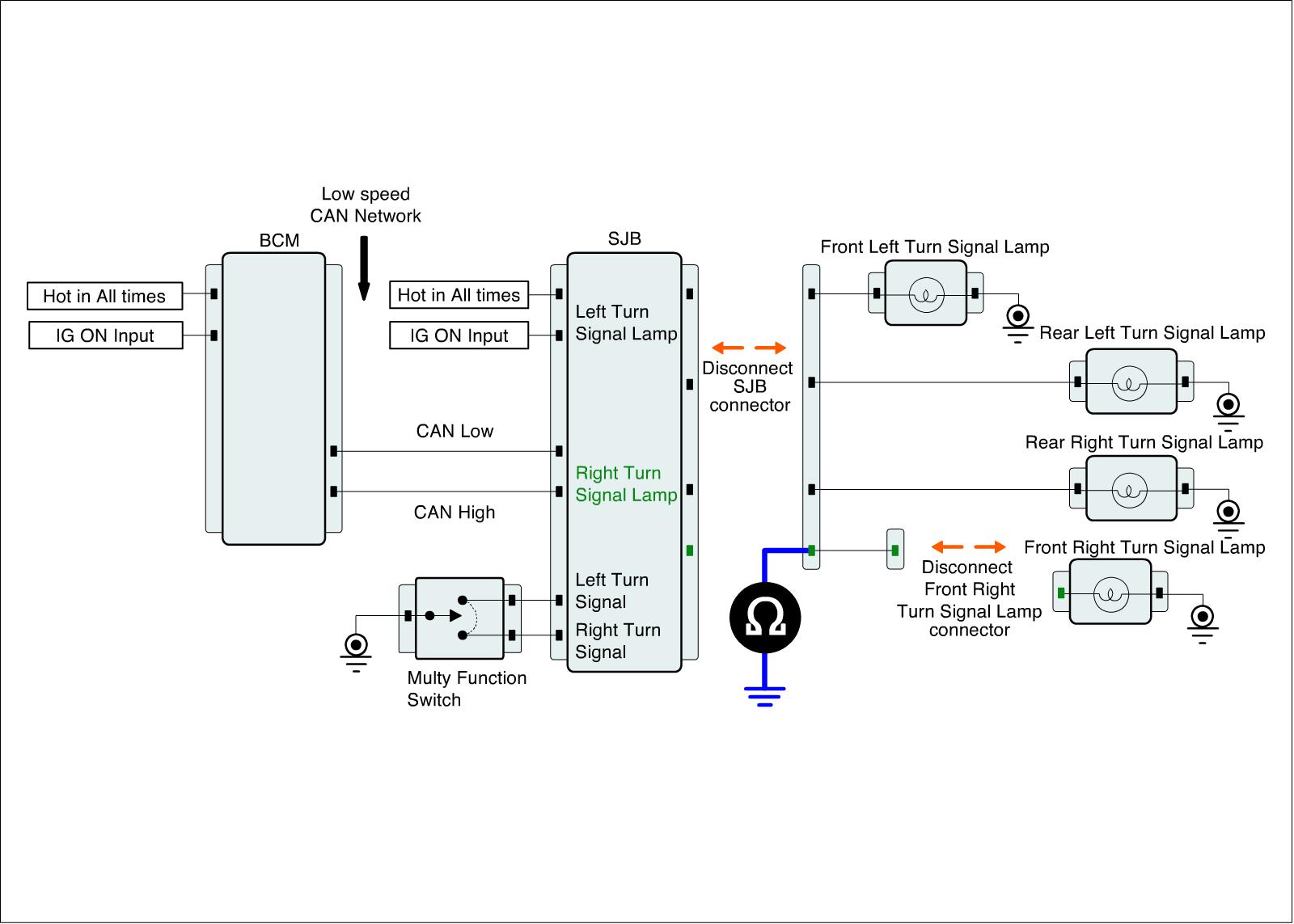

3. Measure resistance between the Front Right turn signal lamp terminal of SJB harness connector and chassis ground.

Specification :Infinity








4. Is the measured resistance within specification?
