Smart Junction Box
B2522 Turn Signal LH Front Circuit Short to Ground - General Information

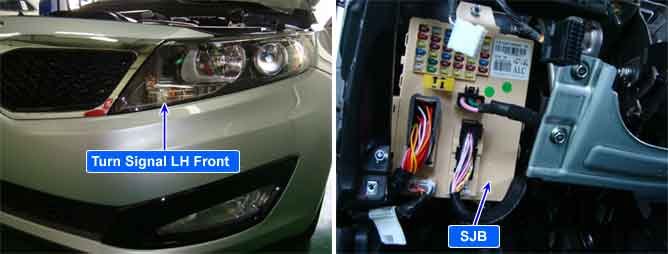

Component Location





General Description

Once BCM receives right turn switch working signal, it sends the signal to SJB by CAN communition. SJB makes right turn signal lamp flickering.






DTC Description

This code is set when Front left turn signal lamp circuit is shotted to ground for more than 150ms during left turn signal lamp operating.

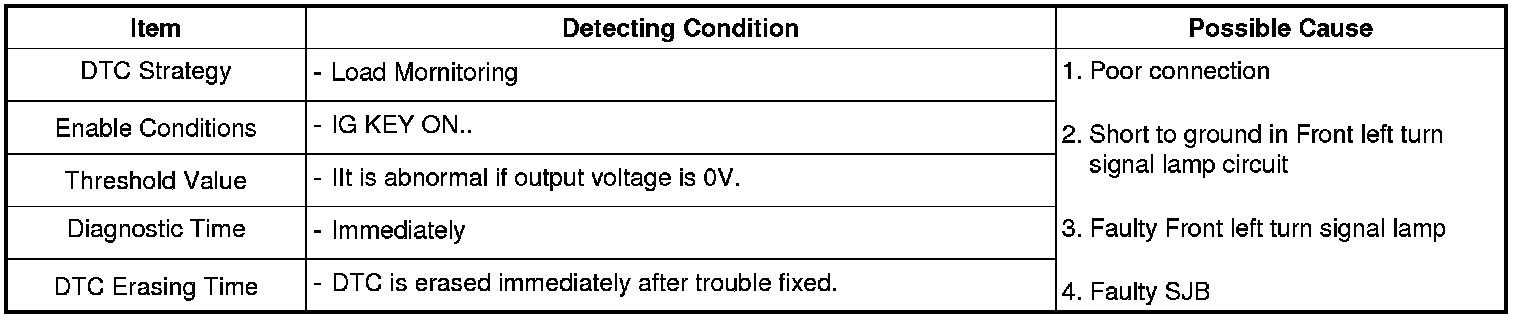

DTC Detecting Condition





Diagnostic Circuit Diagram
