General Information

Smart Junction Box
B2520 Turn Signal RH Front Open Circuit - General Information

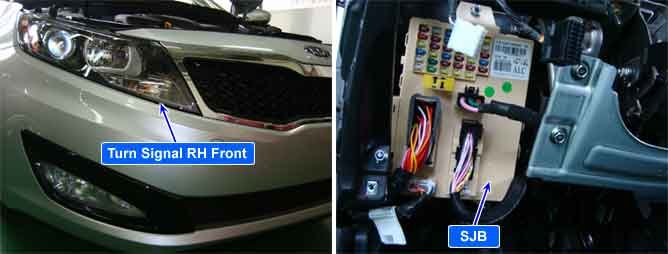

Component Location





General Description

Once BCM receives right turn switch working signal, it sends the signal to SJB by CAN communition. SJB makes right turn signal lamp flickering.






DTC Description

This code is set when Front right turn signal lamp circuit is shotted to ground for more than 150ms during right turn signal lamp operating.

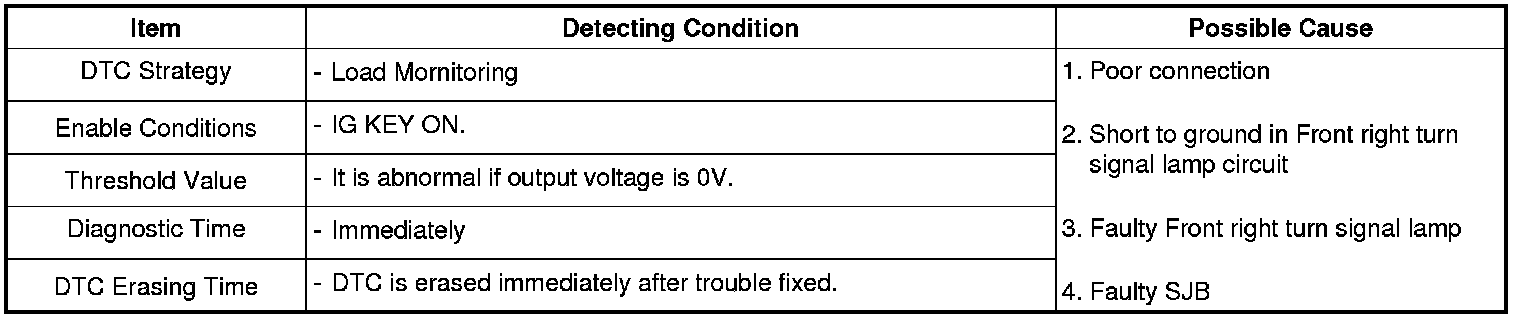

DTC Detecting Condition





Diagnostic Circuit Diagram
