General Information

Smart Junction Box
B2518 Turn Signal LH Front Open Circuit - General Information

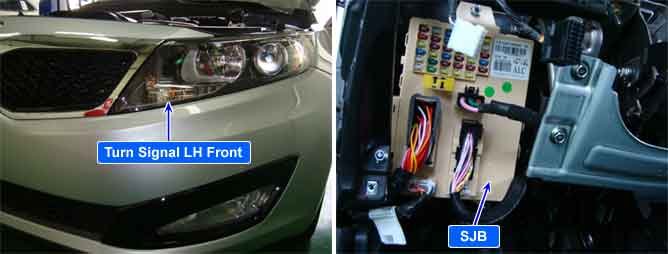

Component Location





General Description

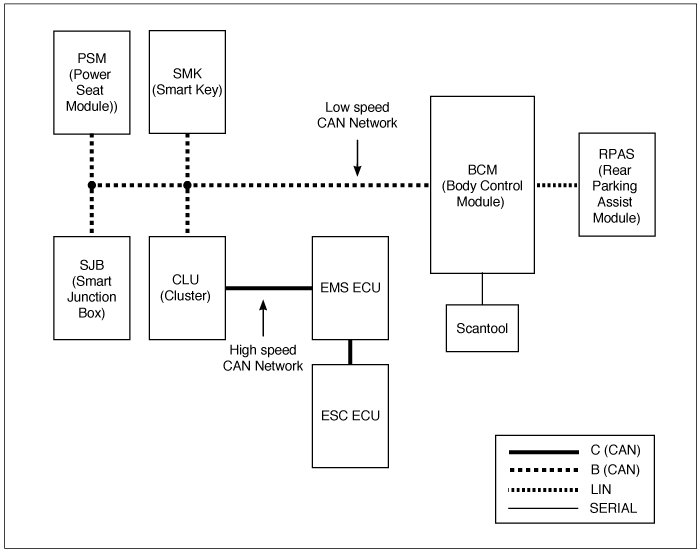

Once BCM receives left turn switch working signal, it sends the signal to SJB by CAN communition. SJB makes left turn signal lamp flickering.






DTC Description

This code is set when Front left turn signal lamp circuit is open for more than 150ms during left turn signal lamp operating.

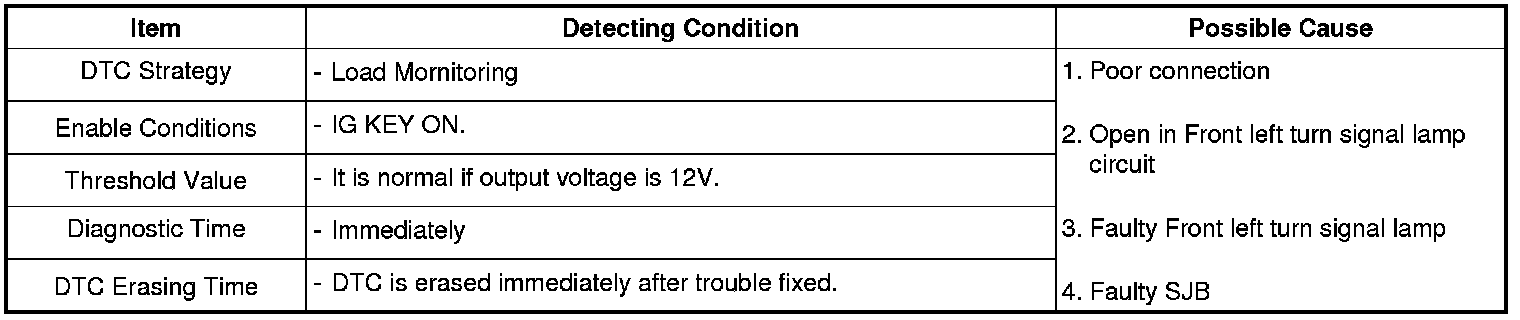

DTC Detecting Condition

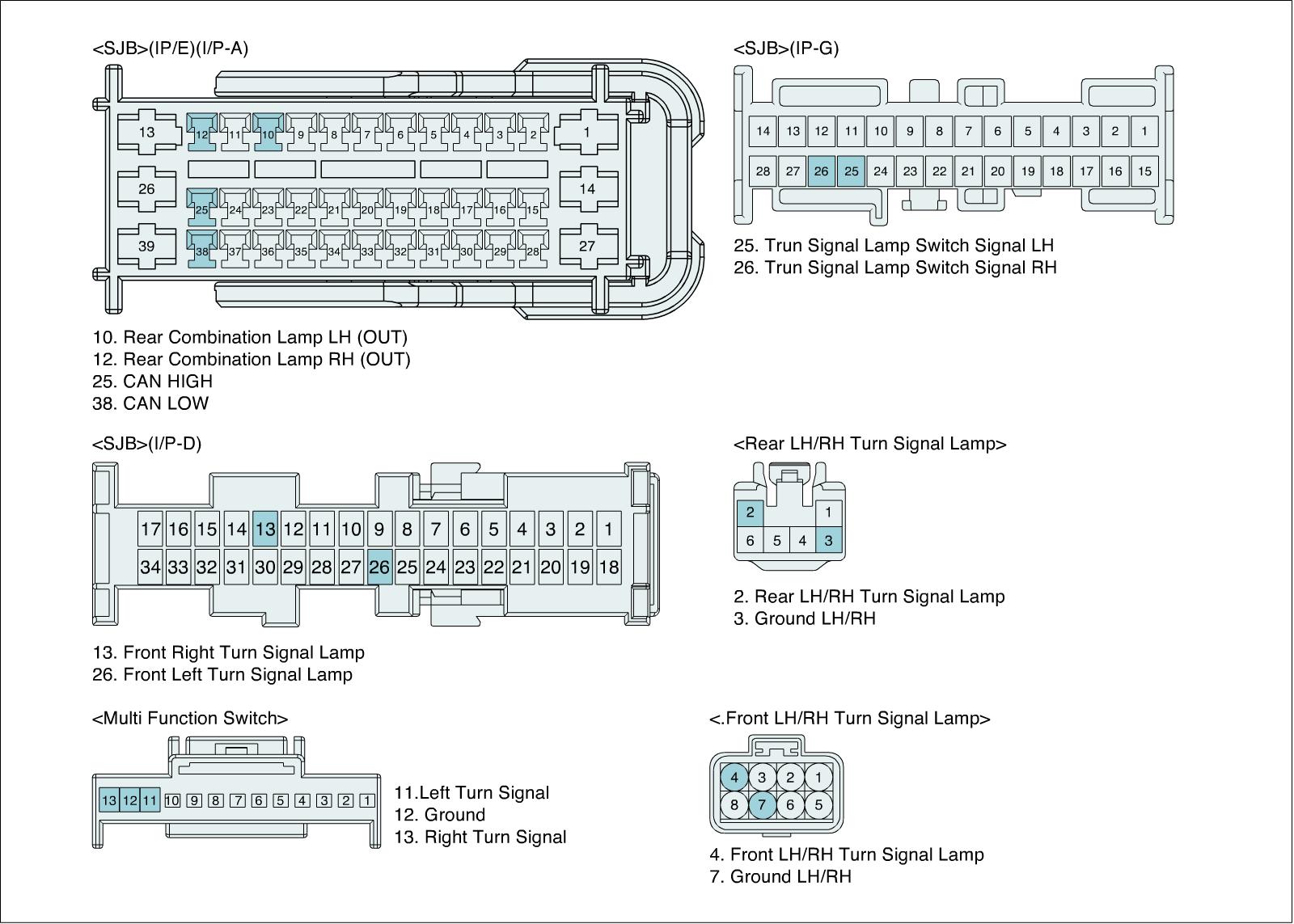

Diagnostic Circuit Diagram
