B2517 Internal Tail Lamp Circuit Short to Ground - Scantool Diagnostics

GDS Data Analysis

1. Connect GDS.
2. IG "ON" and engine "OFF".

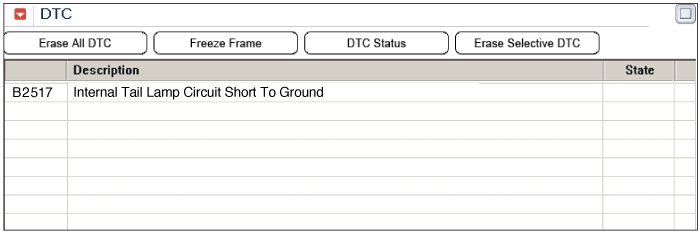

3. Select "DTC Analysis" mode.
4. After erase DTC, keep the vehicle condition within "the enable conditions" .

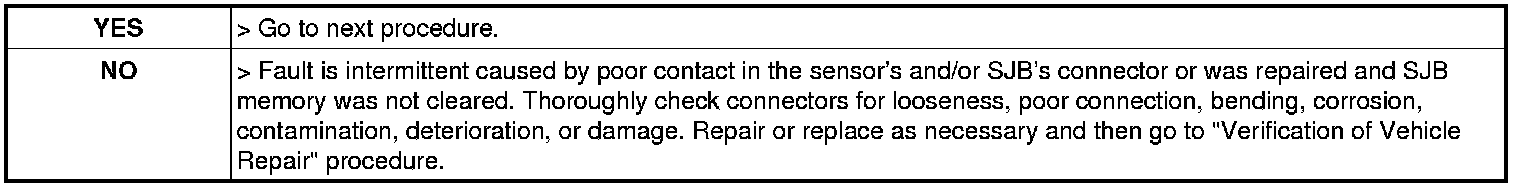

5. Is the same DTC occurred again?





Check Internal Tail Lamp
1. IG "OFF" and connect GDS.
2. IG "ON" & ENG "OFF"
3. Select "Actuation Test and current data" mode.
4. Execute "Internal Tail Lamp" test.

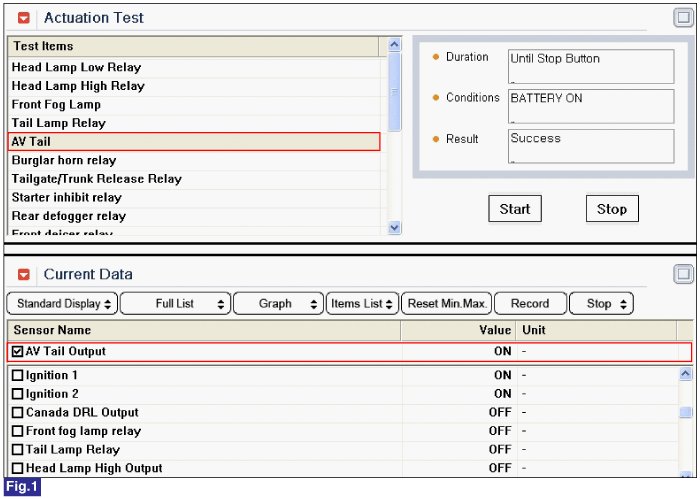

Fig 1) Normal result After "Internal Tail Lamp relay" Actuation test.

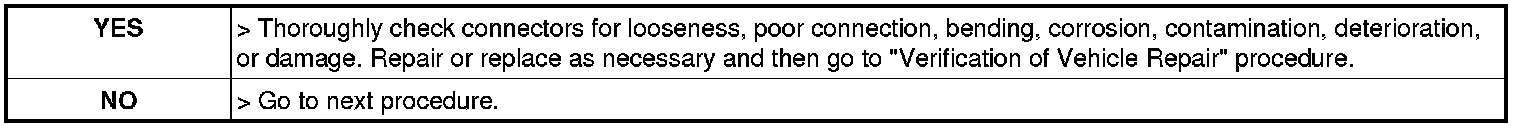

5. Is Internal Tail Lamp working normal ?
