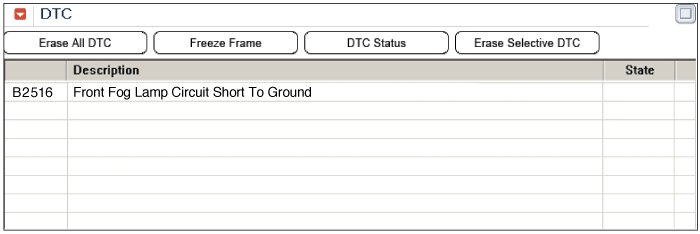

B2516 Front Fog Lamp Circuit Short to Ground - Scantool Diagnostics

GDS Data Analysis

1. Connect GDS.
2. IG "ON" and engine "OFF".
3. Select "DTC Analysis" mode.
4. After erase DTC, keep the vehicle condition within "the enable conditions" .

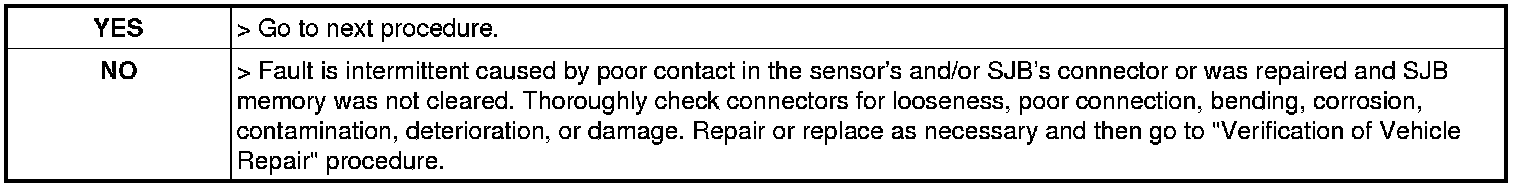

5. Is the same DTC occurred again?





Check Fog Lamp
1. IG "OFF" and connect GDS.
2. IG "ON" & ENG "OFF".
3. Select "Actuation Test and current data" mode.
4. Execute "Fog Lamp" test.

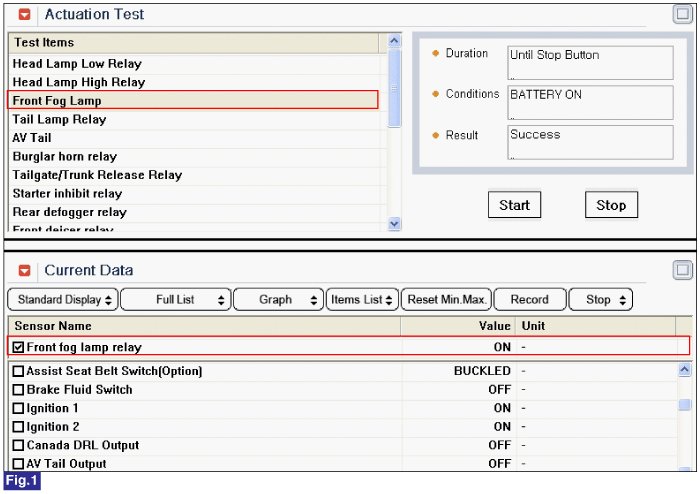

Fig 1) Normal result After "Front Fog Lamp relay" Actuation test.
5. Is Fog Lamp working normal ?
