General Information

Smart Junction Box
B2516 Front Fog Lamp Circuit Short to Ground - General Information

Component Location





General Description

Once BCM receives fog lamp switch working signal, it sends the signal to SJB by CAN communition. SJB turns on fog lamp.






DTC Description

This code is set when left front fog lamp circuit is shortted to ground for more than 150ms during left front fog lamp operating.

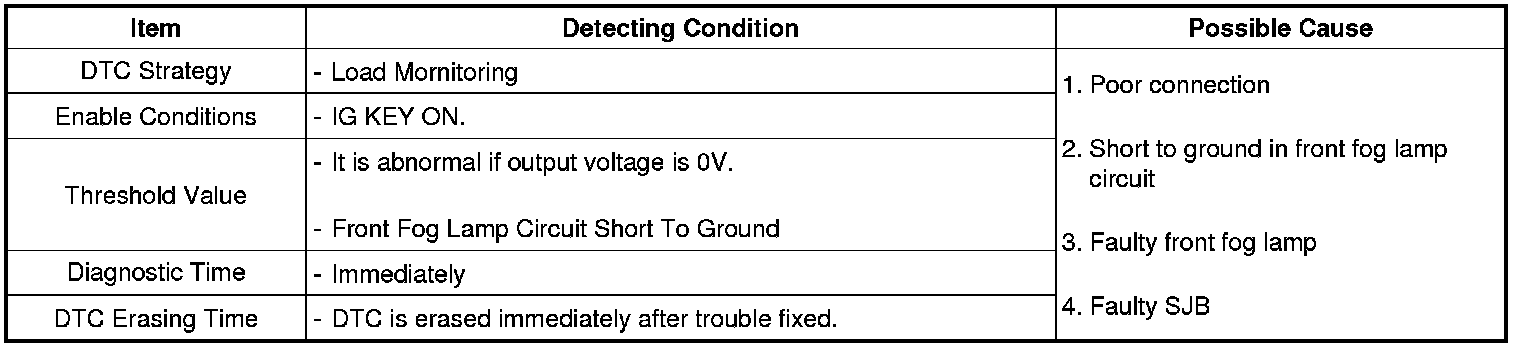

DTC Detecting Condition

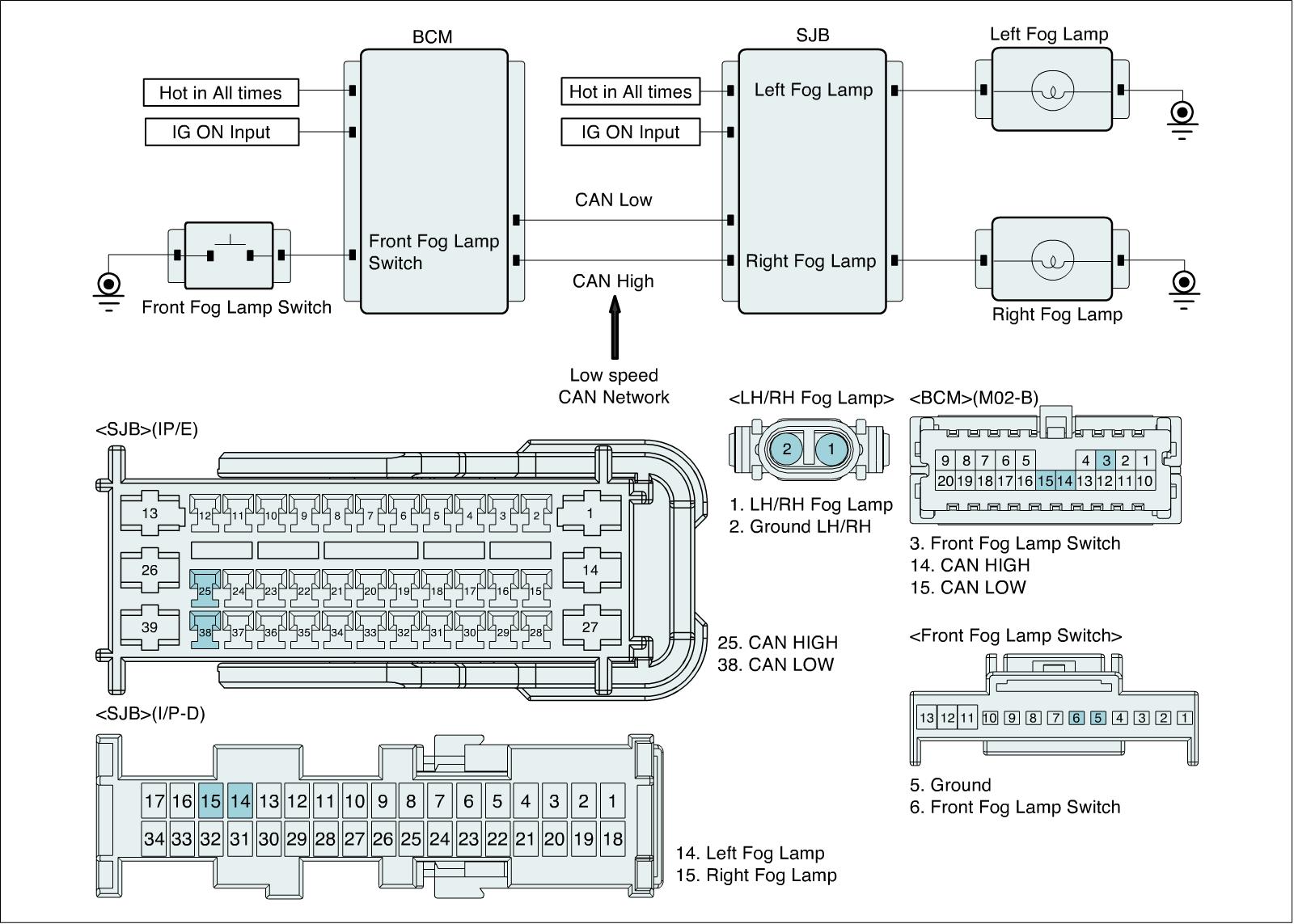

Diagnostic Circuit Diagram
