B2515 External Tail Lamp LH Circuit Short to Ground - Scantool Diagnostics

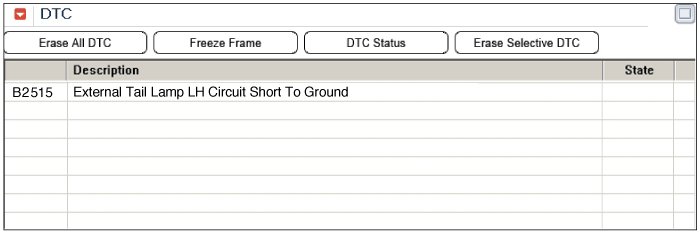

GDS Data Analysis

1. Connect GDS.
2. IG "ON" and engine "OFF".
3. Select "DTC Analysis" mode.
4. After erase DTC, keep the vehicle condition within "the enable conditions" .

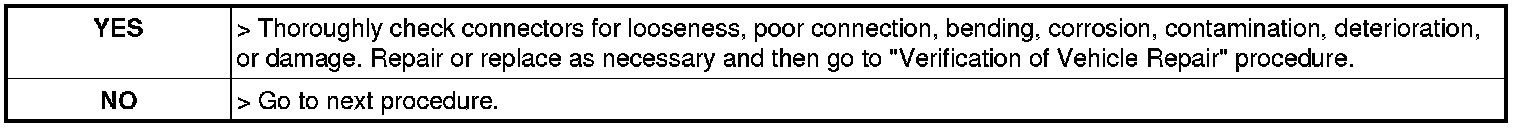

5. Is the same DTC occurred again?





Check Left External Tail Lamp
1. IG "OFF" and connect scantool
2. IG "ON" & ENG "OFF"
3. Select "Actuation Test and current data" mode.
4. Execute "Left External Tail Lamp" test.

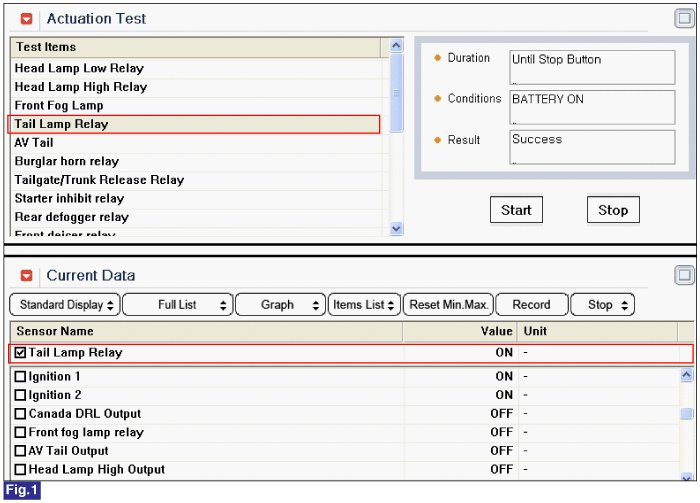

Fig 1) Normal result After "Left External Tail Lamp relay" Actuation test.
5. Is External Tail Lamp LH working normal ?
