W/Harness Inspection

Smart Junction Box
B2514 External Tail Lamp RH Circuit Short to Ground - Inspection/Repair:_:W/Harness Inspection

Terminal and Connector Inspection

1. Many malfunctions in the electrical system are caused by poor harness(es) and terminals. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
3. Has a problem been found?






Right External Tail Lamp Circuit Inspection

Check short to ground in harness
1. IG "OFF", disconnect battery (-) terminal.

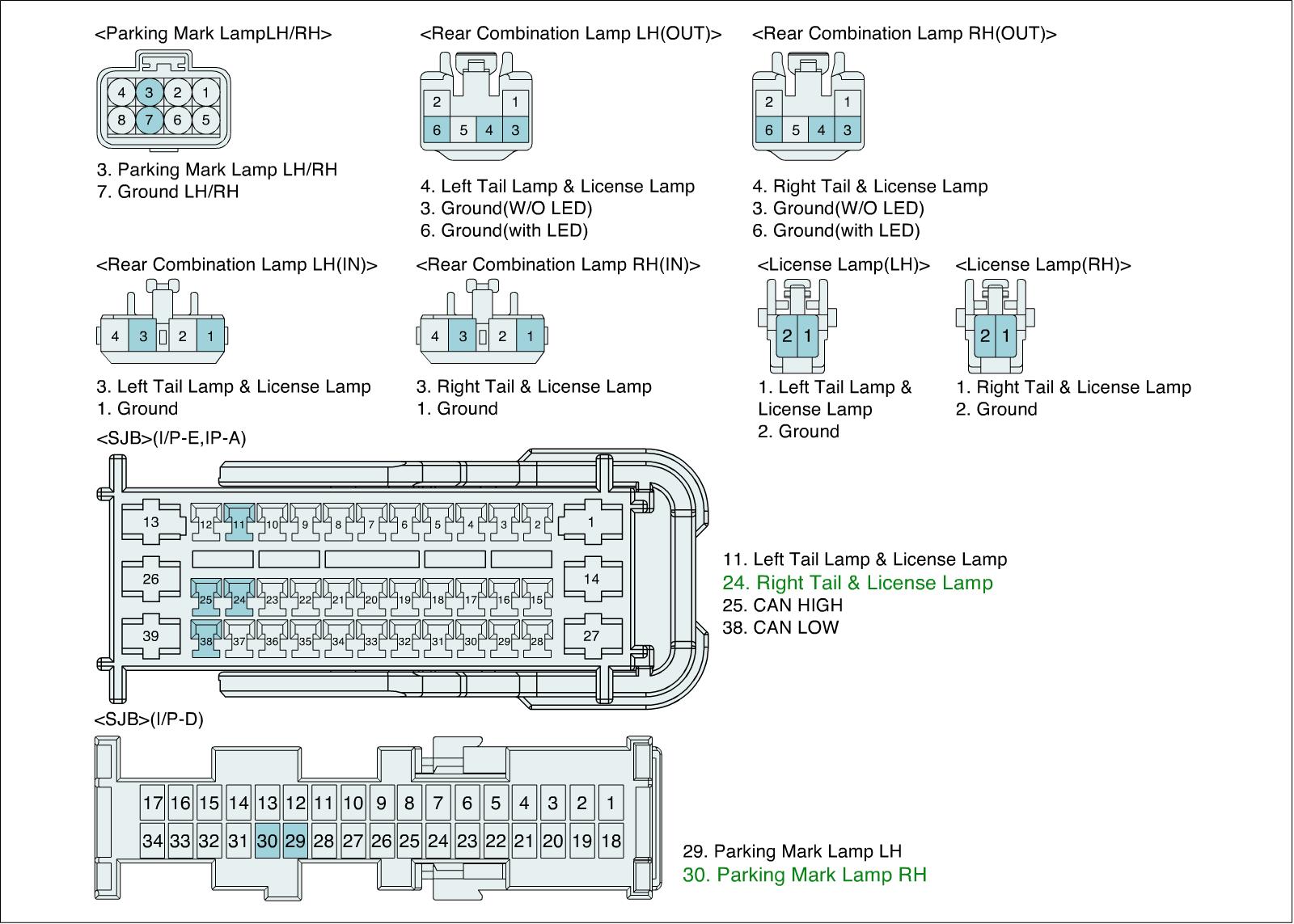

2. Disconnect SJB, Right External Tail Lamp connector.

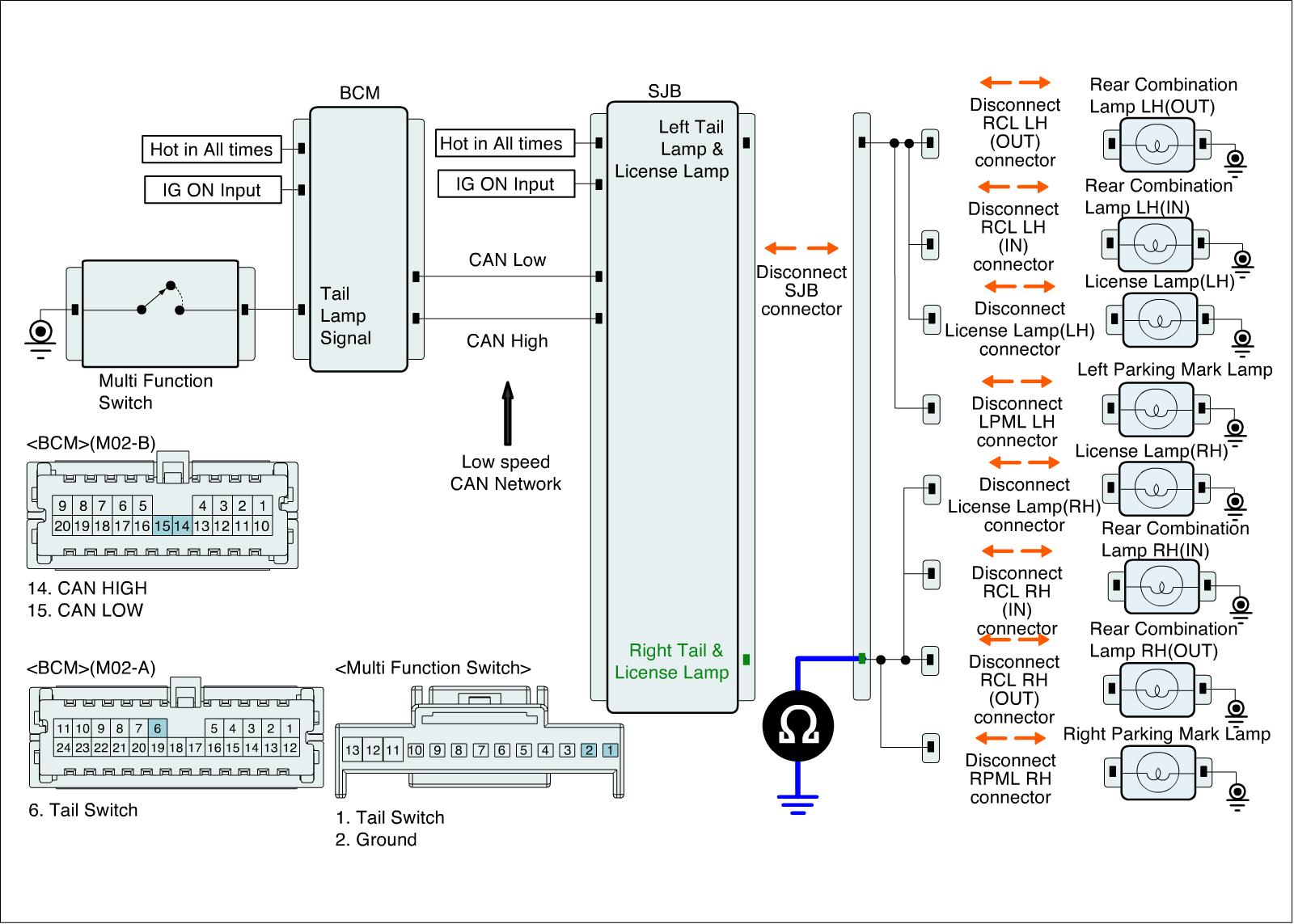

3. Measure resistance between the Right External Tail Lamp terminal of SJB harness connector and chassis ground.

Specification :Infinity

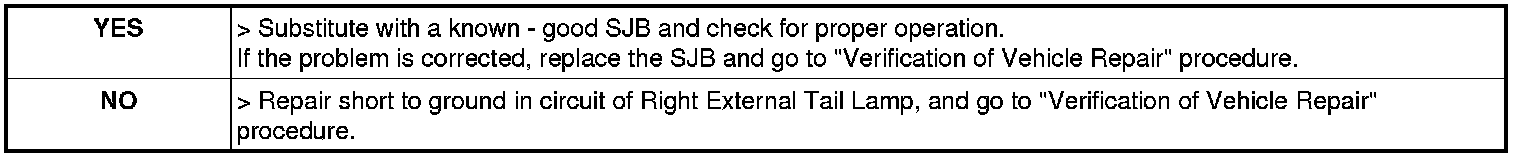

4. Is the measured resistance within specification?
