B2514 External Tail Lamp RH Circuit Short to Ground - Scantool Diagnostics

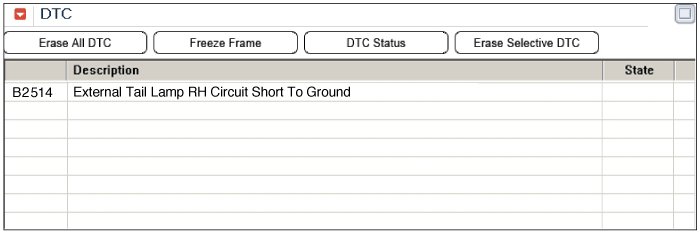

GDS Data Analysis

1. Connect GDS.
2. IG "ON" and engine "OFF".
3. Select "DTC Analysis" mode.
4. After erase DTC, keep the vehicle condition within "the enable conditions" .

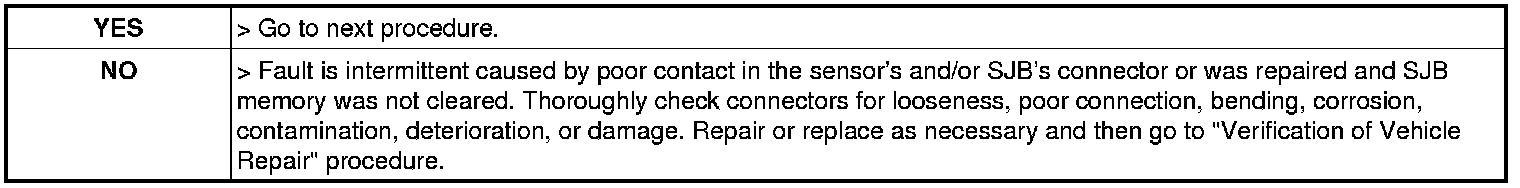

5. Is the same DTC occurred again?





Check Right External Tail Lamp
1. IG "OFF" and connect GDS.
2. IG "ON" & ENG "OFF"
3. Select "Actuation Test and current data" mode.
4. Execute "Right External Tail Lamp" test.




Fig 1) Normal result After "Right External Tail Lamp relay" Actuation test.

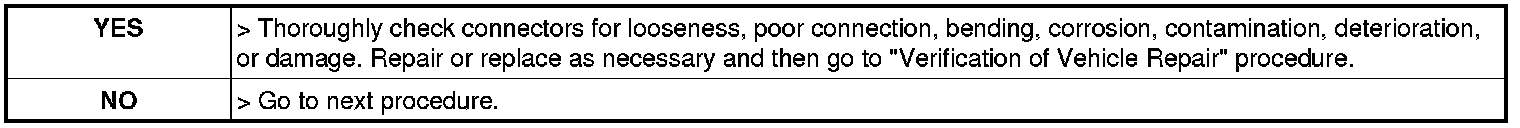

5. Is External Tail Lamp RH working normal ?
