W/Harness Inspection

Smart Junction Box
B2513 Left Headlamp Low Circuit Short to Ground - Inspection/Repair:_:W/Harness Inspection

Terminal & Connector Inspection

1. Many malfunctions in the electrical system are caused by poor harness(es) and terminals. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
3. Has a problem been found?






Left Head lamp Low Circuit Inspection

Check short to ground in harness
1. IG "OFF", disconnect battery (-) terminal.

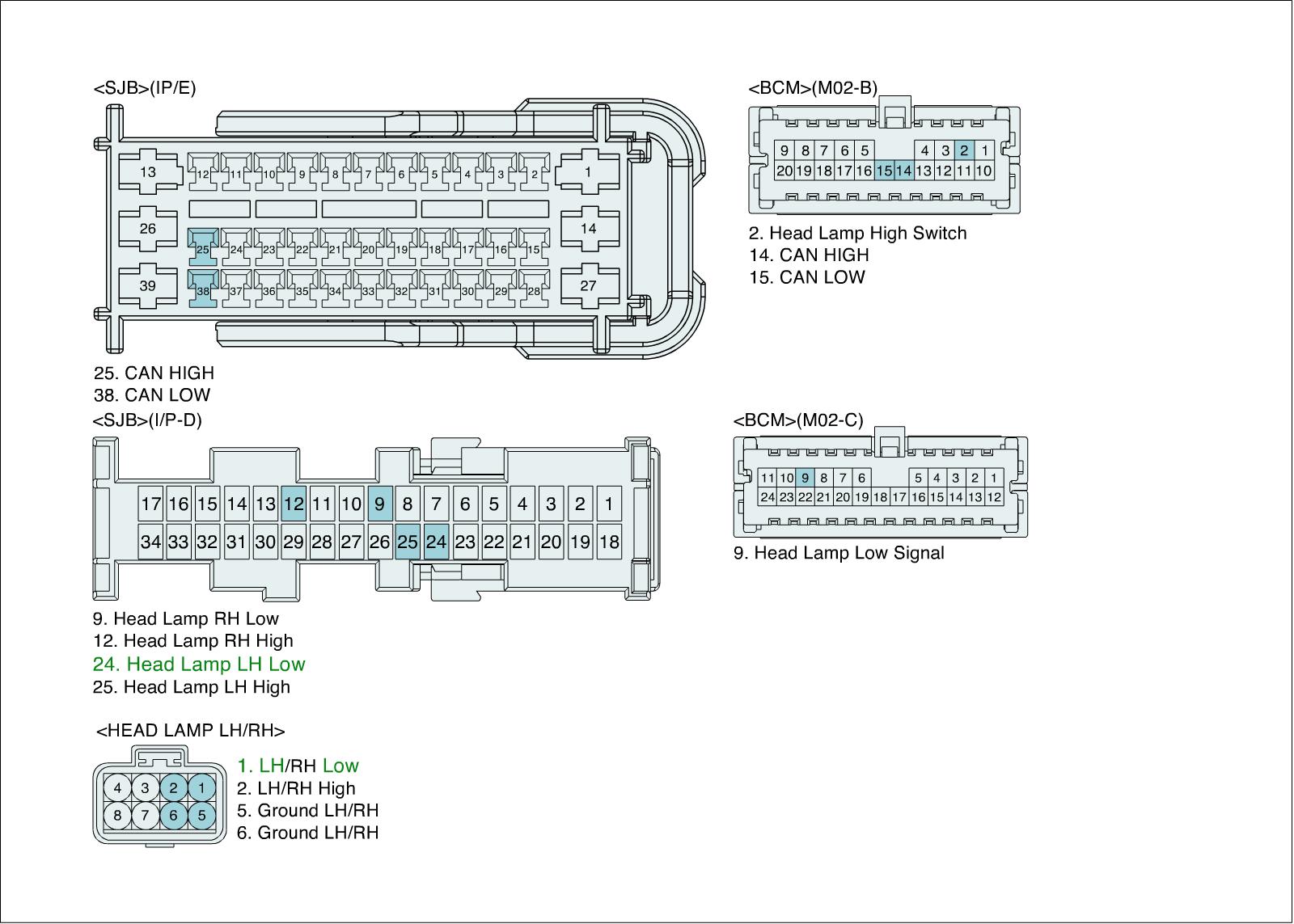

2. Disconnect SJB, Left Head lamp Low connector.

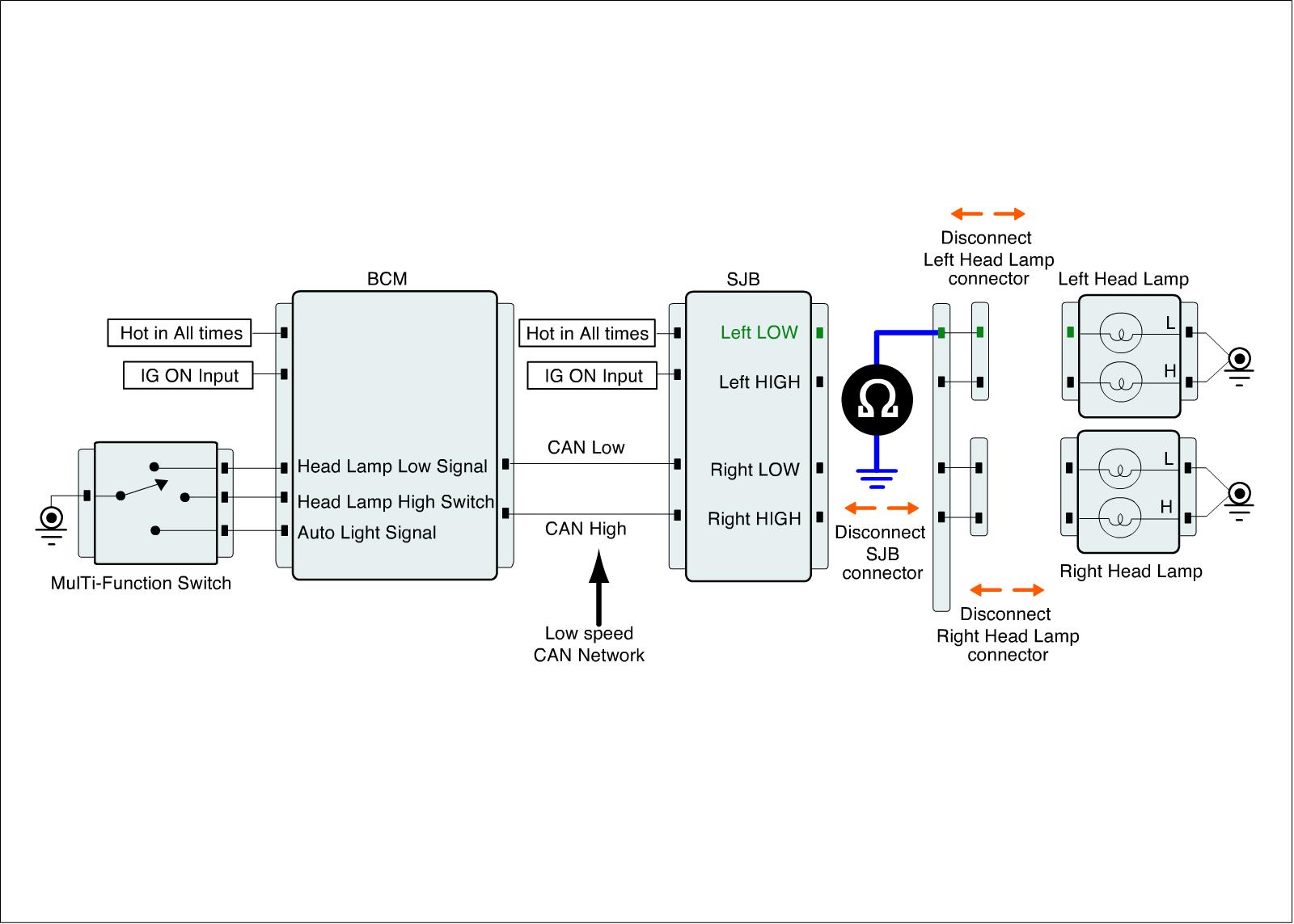

3. Measure resistance between the Left Head lamp Low terminal of SJB harness connector and chassis ground.

Specification :Infinity

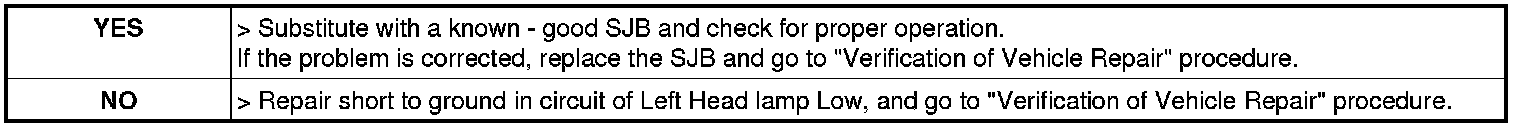

4. Is the measured resistance within specification?
