Smart Junction Box
B2513 Left Headlamp Low Circuit Short to Ground - General Information

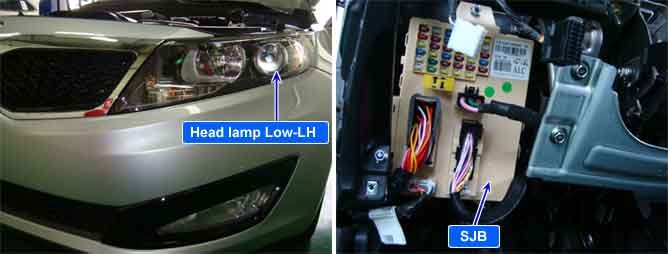

Component Location





General Description

Once BCM receives head lamp low switch working signal, it sends the signal to SJB by CAN communition. SJB turns on head lamp low.






DTC Description

This code is set when left head lamp low circuit is shotted to ground for more than 150ms during left head lamp low operating.

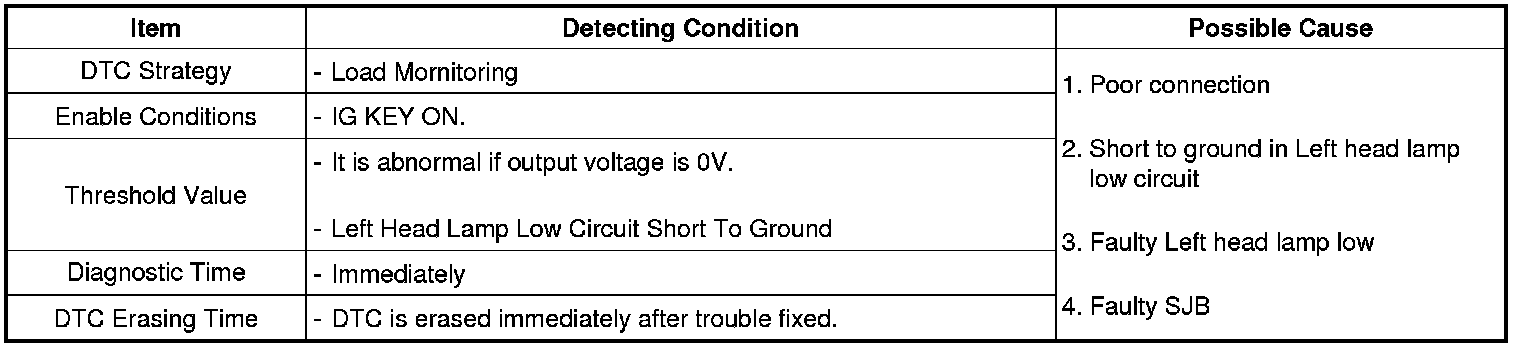

DTC Detecting Condition





Diagnostic Circuit Diagram
