B2512 Right Headlamp Low Circuit Short to Ground - Scantool Diagnostics

GDS Data Analysis

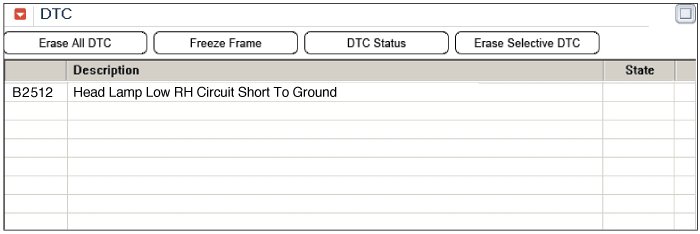

1. Connect GDS.
2. IG "ON" and engine "OFF".
3. Select "DTC Analysis" mode.
4. After erase DTC, keep the vehicle condition within "the enable conditions" .

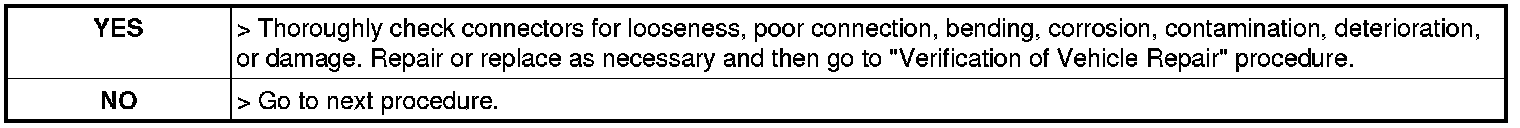

5. Is the same DTC occurred again?





Check Right head lamp low
1. IG "OFF" and connect GDS.
2. IG "ON" & ENG "OFF"
3. Select "Actuation Test and current data" mode.
4. Execute "Right head lamp low" test.

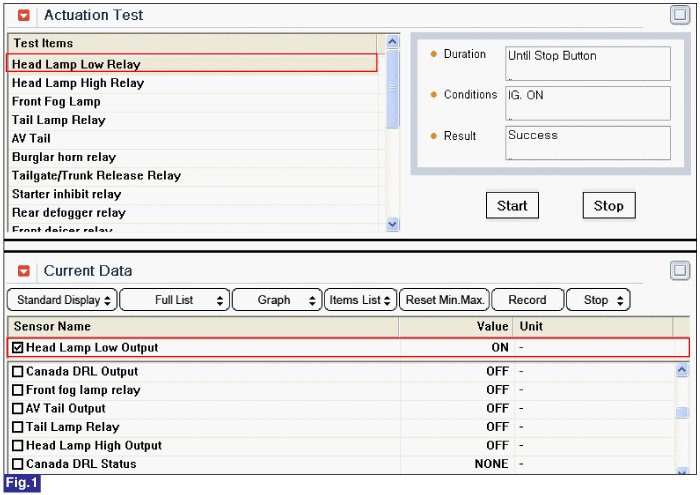

Fig 1) Normal result After "Head lamp Low relay" Actuation test.

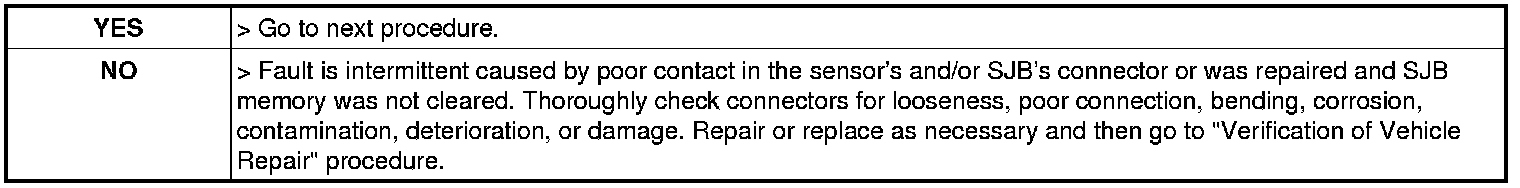

5. Is Right head lamp low working normal ?
