B2511 Left Headlamp High Circuit Short to Ground - Scantool Diagnostics

GDS Data Analysis

1. Connect GDS.
2. IG "ON" and engine "OFF".
3. Select "DTC Analysis" mode.
4. After erase DTC, keep the vehicle condition within "the enable conditions" .




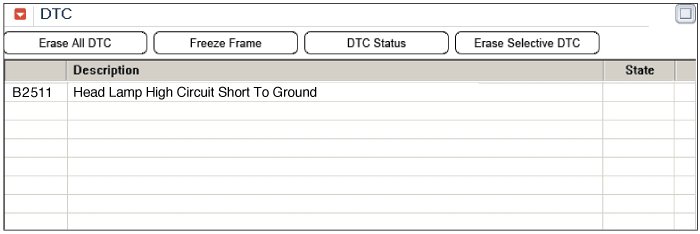

5. Is the same DTC occurred again?





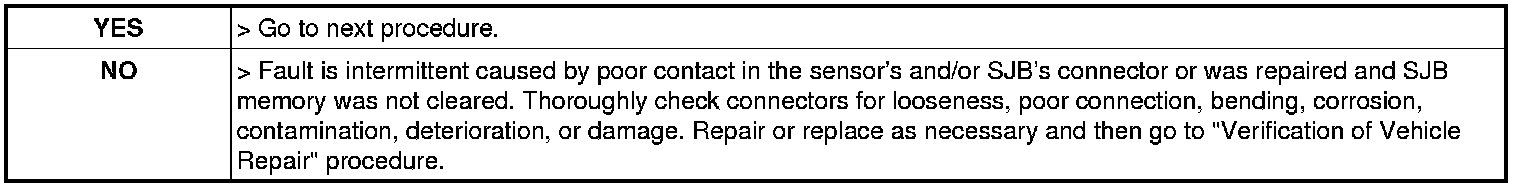

Check left head lamp high
1. IG "OFF" and connect GDS.
2. IG "ON" & ENG "OFF".
3. Select "Actuation Test and current data" mode.
4. Execute "left head lamp high" test.

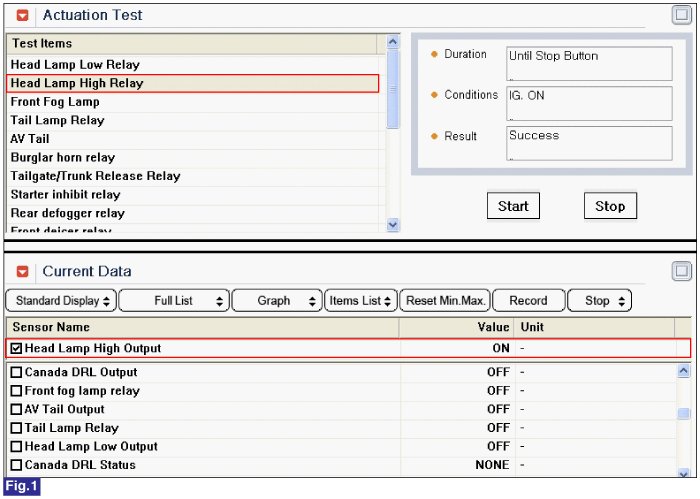

Fig 1) Normal result After "Head lamp high relay" Actuation test.
5. Is left head lamp high working normal ?
