Smart Junction Box
B2510 Right Headlamp High Circuit Short to Ground - General Information

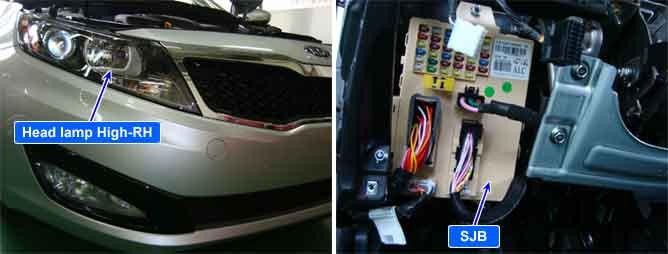

Component Location





General Description

Once BCM receives head lamp high switch working signal, it sends the signal to SJB by CAN communition. SJB turns on headlamp high.






DTC Description

This code is set when head lamp high right circuit is shotted to ground for more than 150ms during right head lamp high operating.

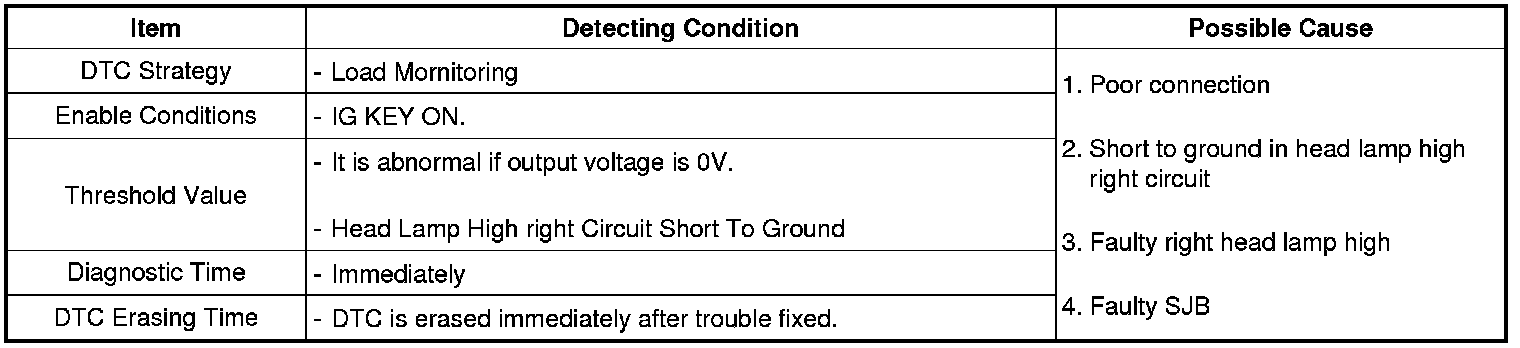

DTC Detecting Condition





Diagnostic Circuit Diagram
