Airbag(Event #1)
B2500 Warning lamp Failure - General Information

Component Location





General Description

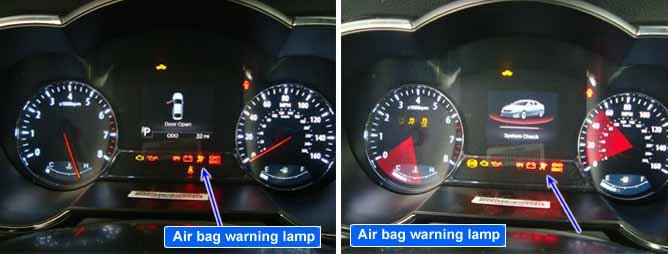

Air bag warning lamp is located at cluster
When key is in 'ignition on' position, SRSCM performs diagnosis of overall air bag system.If there's no fault, air bag.
Warning lamp in cluster flickers for a whlie and then goes out.
SRSCM measures voltage of out terminal of warning lamp to check if warnning lamp is operated in accordance with signal SRSCM sends.

DTC Description

The SRSCM sets DTC B2500 if there is an open circuit or short to ground in air bag circuit harness.

DTC Detecting Condition

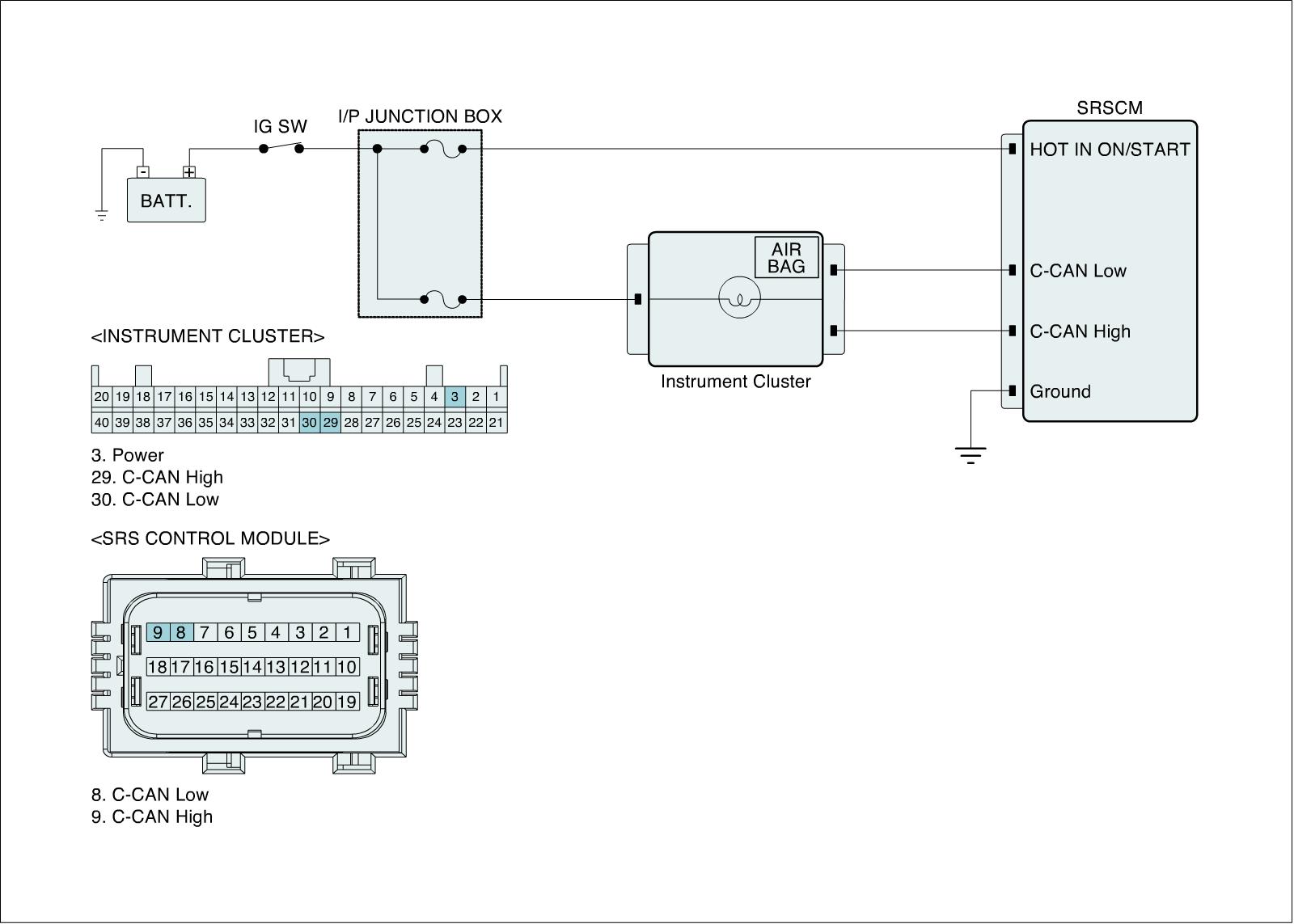

Diagnostic Circuit Diagram
