B2406 Air Mix Motor-Driver - Scantool Diagnostics

Monitor Scantool data

Actuation Test
1. Connect scantool with diagnostic connector.
2. Warm up the engine to normal engine temperature after engine starts.

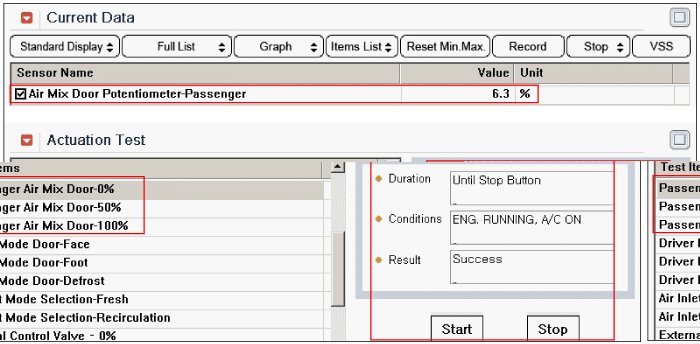

3. Select and monitor "Air Mix Door Potentioner-Driver" parameter on scantool.
4. Select and perform Actuation test Air Mix Door Potentioner-Driver - 0% / 50% / 100% in order.
5. Check that the value of all the parameters are changed when performing the actuation test.

Specification :Check that the value of Air Mix Door Potentiometer at current data should be close to the value of the acutation test.

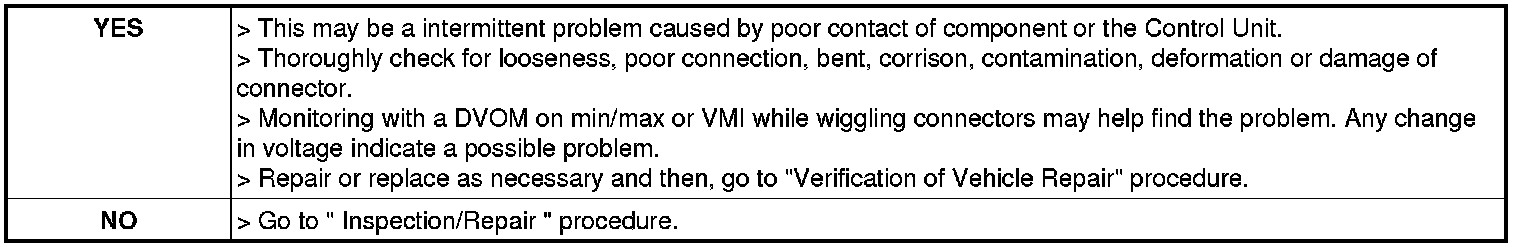

6. Does the value of current data follow in accordance with the each actuation test ?
