Scantool Diagnostics

Smart Key Unit
B2120 SMK IGN1 Control Output Fault - Scantool Diagnostics

Monitor Scantool Data

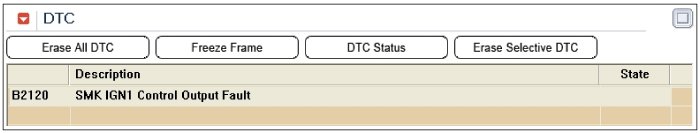

Check DTC
1. Connect GDS.
2. IG "ON" and engine "OFF".
3. Select "DTC Analysis" mode.
4. After erase DTC, keep the vehicle condition within "the enable conditions" .

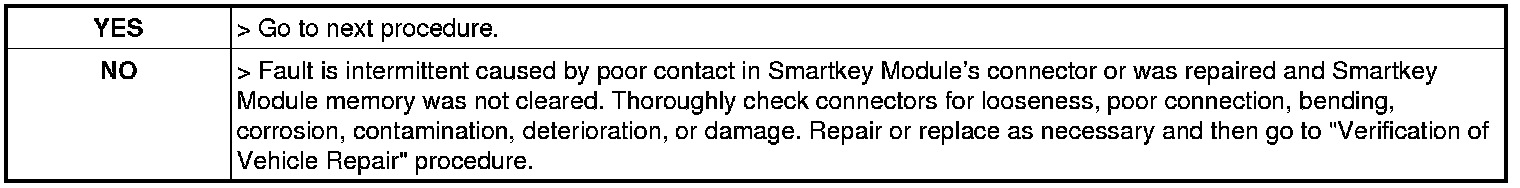

5. Is the same DTC occurred again ?
