Scantool Diagnostics

Airbag(Event #1)
B1730 Anchor Pretensioner front-Driver resistance too High - Scantool Diagnostics

Monitor Scantool Data

1. Ignition "OFF", connect scantool.
2. Ignition "ON"& Engine "OFF", select "Current Data" mode.
3. Monitor the "Anchor Pretensioner front-Driver resistance" parameter on the Scantool.

Specification :1.1Ohms< Resistance of Anchor Pretensioner front-Driver < 6.7Ohms

Reference :In a case of an open in the Anchor Pretensioner front-Driver circuit : FAIL
In a case of a short to battery in the Anchor Pretensioner front-Driver circuit: FAIL
In a case of a short to ground in the Anchor Pretensioner front-Driver circuit : FAIL

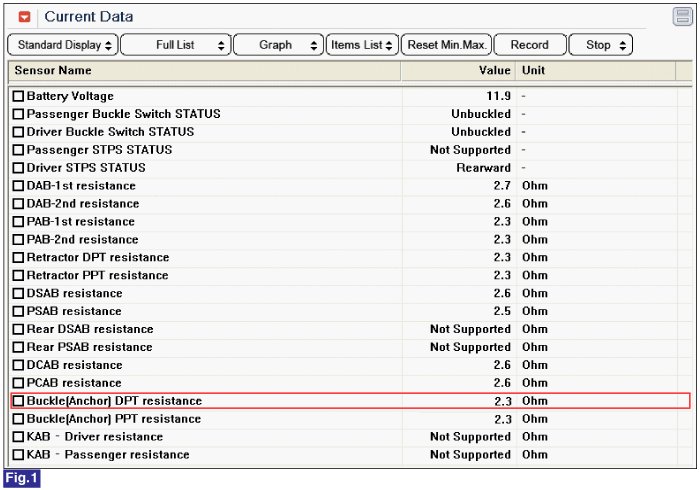

Fig.1) Normal Data

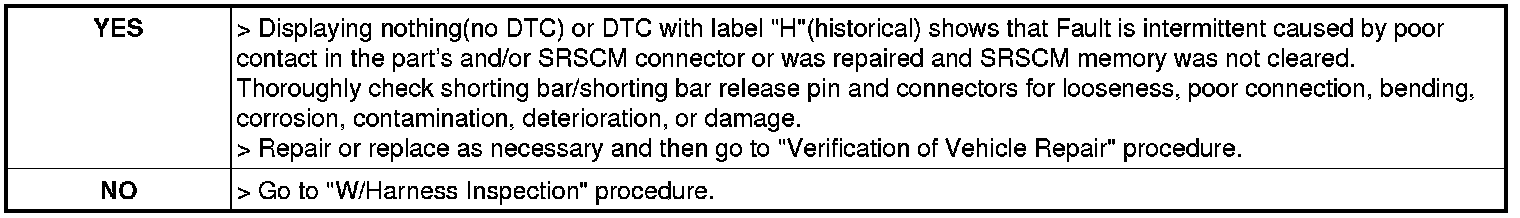

4. Is parameter displayed within specifications?
