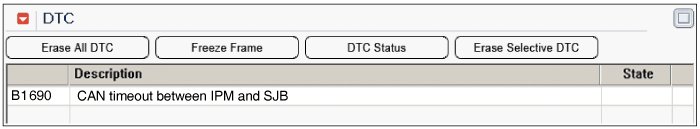

B1690 CAN timeout between IPM and SJB - Scantool Diagnostics

Monitor Scantool Data

1. Connect GDS.
2. IG "ON" and engine "OFF".
3. Select "DTC Analysis" mode.
4. After erase DTC, keep the vehicle condition within "the enable conditions" .

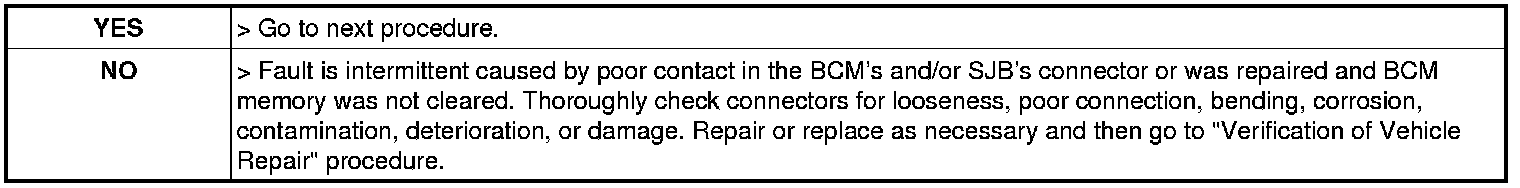

5. Is the same DTC occurred again ?
