Scantool Diagnostics

Body Control Module
B1613 CAN timeout between IPM and CLU - Scantool Diagnostics

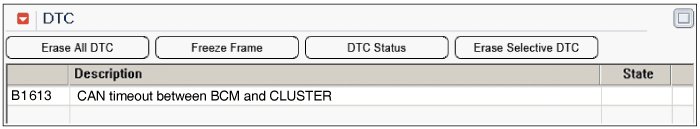

Monitor Scantool Data

1. Connect GDS.
2. IG "ON" and engine "OFF".
3. Select "DTC Analysis" mode.
4. After erase DTC, keep the vehicle condition within "the enable conditions" .

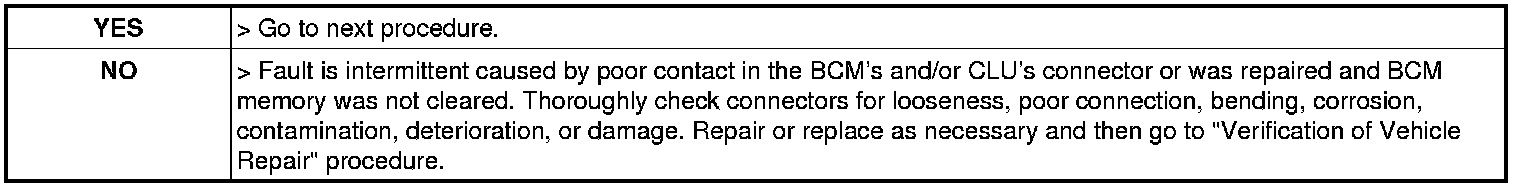

5. Is the same DTC occurred again ?
