Scantool Diagnostics

Body Control Module
B1607 CAN Time-out Between BCM and PSM - Scantool Diagnostics

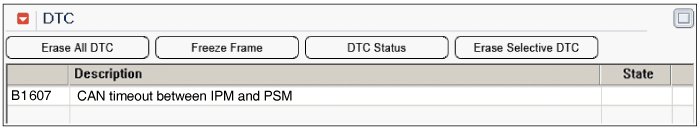

Monitor Scantool Data

1. Connect GDS.
2. IG "ON" and engine "OFF".
3. Select "DTC Analysis" mode.
4. After erase DTC, keep the vehicle condition within "the enable conditions" .

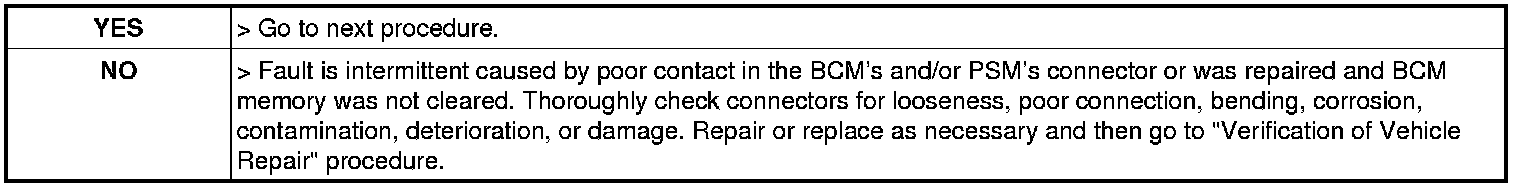

5. Is the same DTC occurred again ?
