Component Inspection

Body Control Module
B1607 CAN Time-out Between BCM and PSM - Inspection/Repair:_:Component Inspection

Component Inspection

Check internal errors of CAN communication units.
1. Connect GDS.
2. IG "ON" and engine "OFF".
3. Select "DTC Analysis" mode.
4. Replace PSM with the new one and check DTC again.








*CAN communication units : BCM(Body Control Module), CLU(Cluster), SMK(Smart Key), SJB(Smart Junction Box), PSM(Power Seat Module).

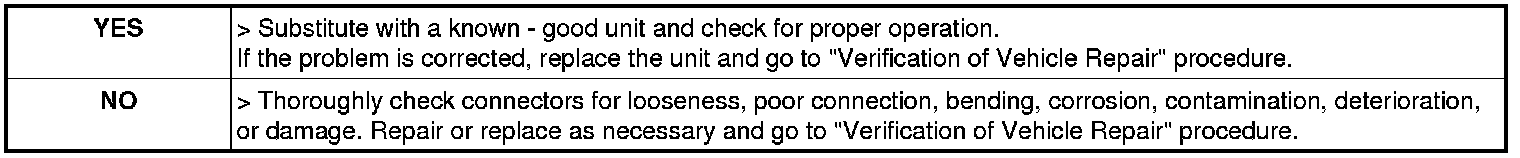

5. Is the code erased ?
