Scantool Diagnostics

Body Control Module
B1603 CAN Bus Off - Scantool Diagnostics

Monitor Scantool Data

1. Connect GDS.
2. IG "ON" and engine "OFF".
3. Select "DTC Analysis" mode.
4. After erase DTC, keep the vehicle condition within "the enable conditions" .

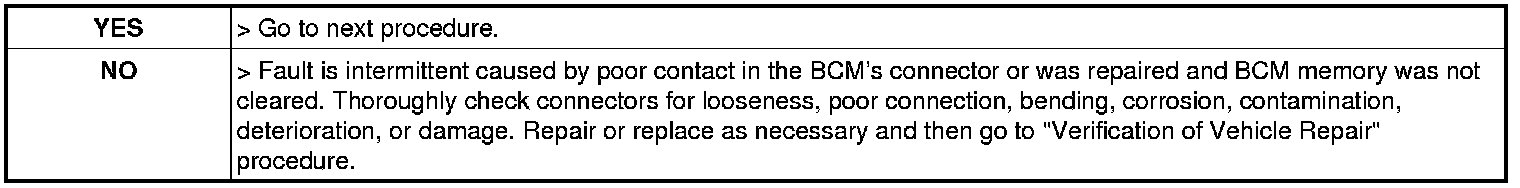

5. Is the same DTC occurred again ?
