Scantool Diagnostics

Weight Classification
B1603 CAN Bus Off - Scantool Diagnostics

Monitor Scantool Data

1. Ignition "OFF", connect scantool.
2. Ignition "ON"& Engine "OFF", select "Diagnostic Trouble Codes(DTC)" mode.

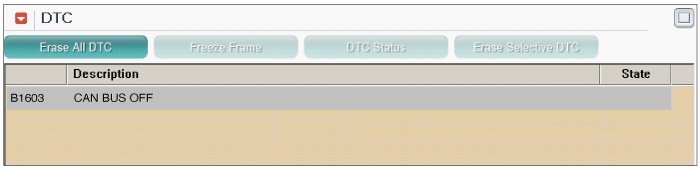

3. Monitor diagnostic trouble code and present of trouble code.
4. Using a scan tool, clear the DTC.

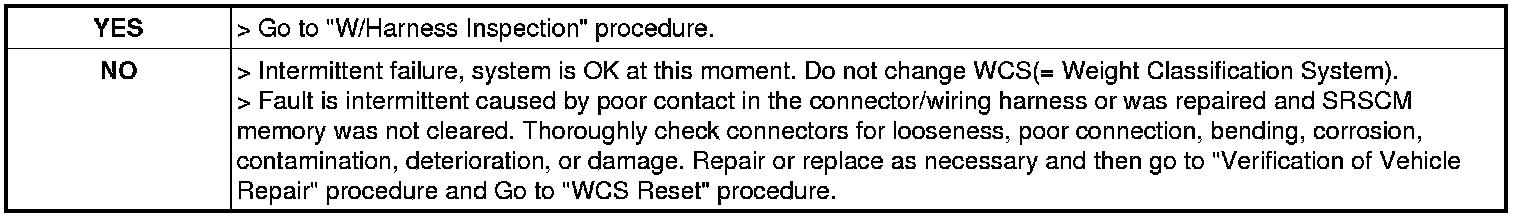

5. Is DTC present problem ?
