Component Inspection

Smart Junction Box
B1602 CAN Error - Inspection/Repair:_:Component Inspection

Component Inspection

Check internal errors of CAN communication units.
1. Connect GDS.
2. IG "ON" and engine "OFF".
3. Select "DTC Analysis" mode.
4. Disconnect CAN communication units one by one and monitor DTC to find the cause.








*CAN communication units : BCM(Body Control Module), CLU(Cluster), SMK(Smart Key), SJB(Smart Junction Box), PSM(Power Seat Module).

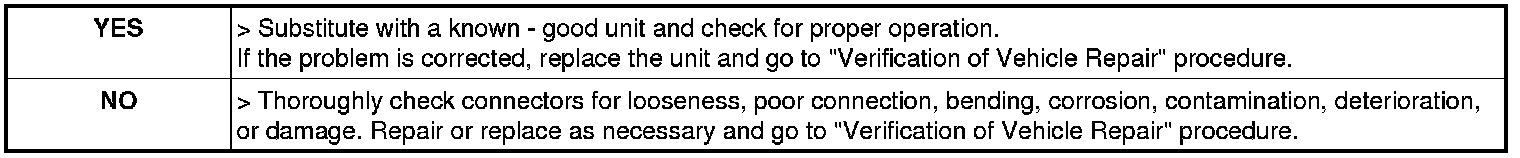

5. Is the code erased?
