B1602 CAN Error - General Information

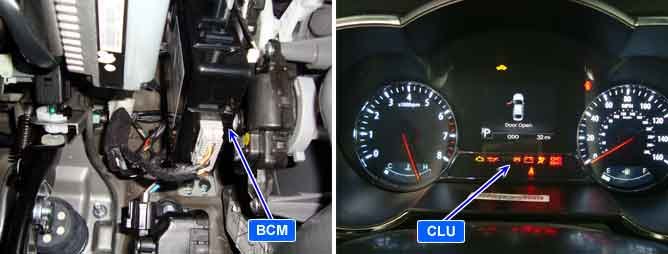

Component Location





General Description

This DTC sets when a communication error between SJB and other control units occur.

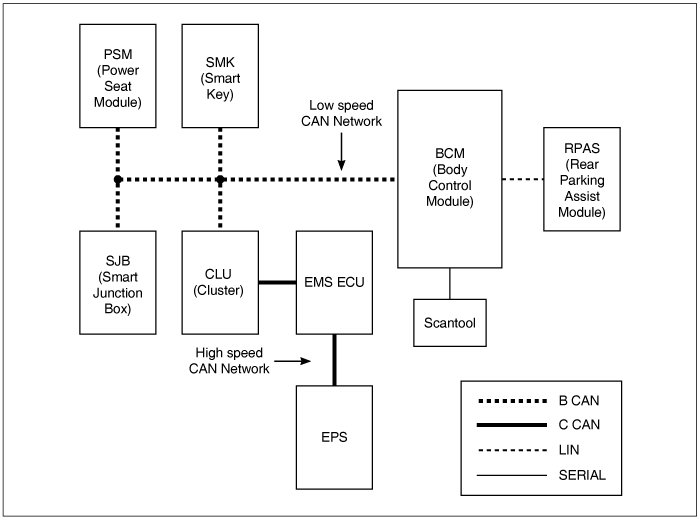

** Body CAN communication Control Units : BCM(Body Control Module), CLU(Cluster), SMK(Smart Key), SJB(Smart Junction Box), PSM(Power Seat Module).
CAN (Controller Area Network) : CAN is a serial bus type communication which links control units.
LIN (Local Interconnect Network) : LIN is serial communication type which is used in electrical control system. (This is less expensive)






DTC Description

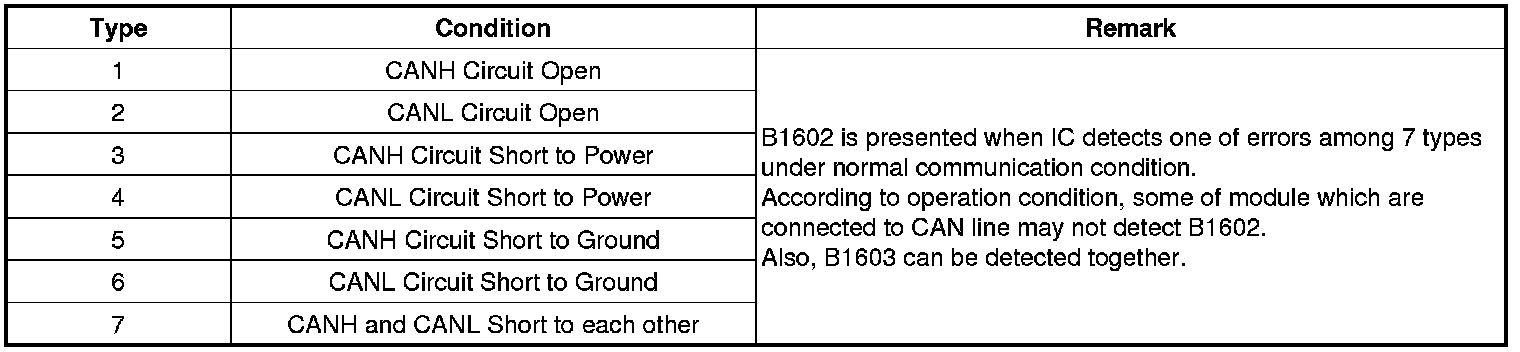

DTC Detecting Condition






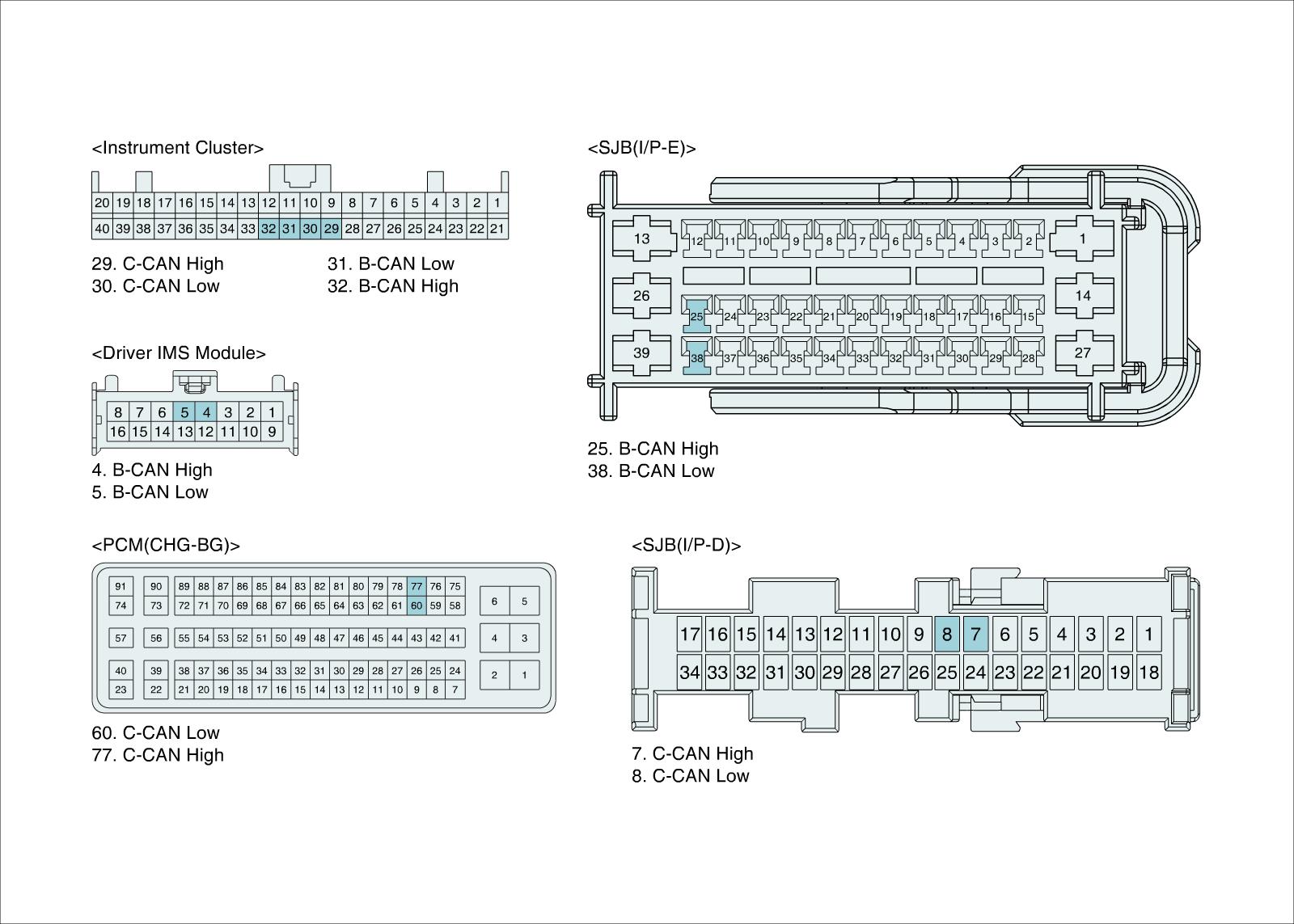

Diagnostic Circuit Diagram










Signal Waveform & Data

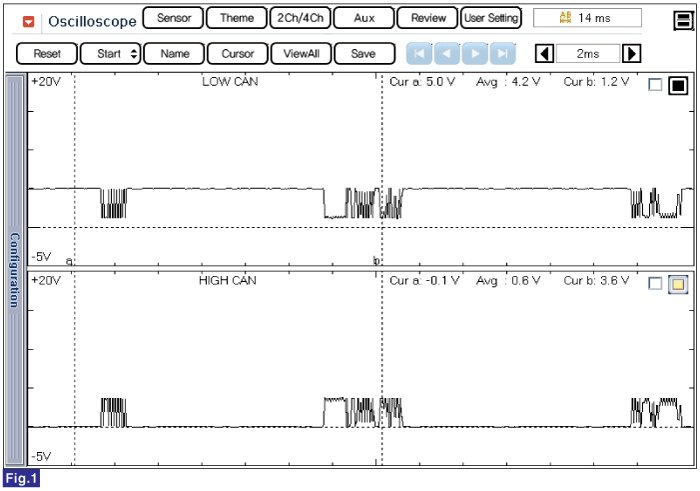

Fig.1) CAN Low/ High Signal Waveform

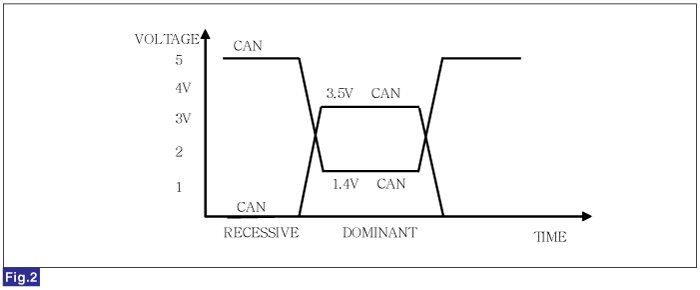

Fig.2) CAN BUS Voltage Level(Low Speed CAN)
