General Information

Body Control Module
B1602 CAN Error - General Information

Component Location





General Description

This DTC sets when a communication error between SJB and other control units occur.
** Body CAN communication Control Units : BCM(Body Control Module), CLU(Cluster), SMK(Smart Key), SJB(Smart Junction Box), PSM(Power Seat Module).
CAN (Controller Area Network) : CAN is a serial bus type communication which links control units.
LIN (Local Interconnect Network) : LIN is serial communication type which is used in electrical control system. (This is less expensive)

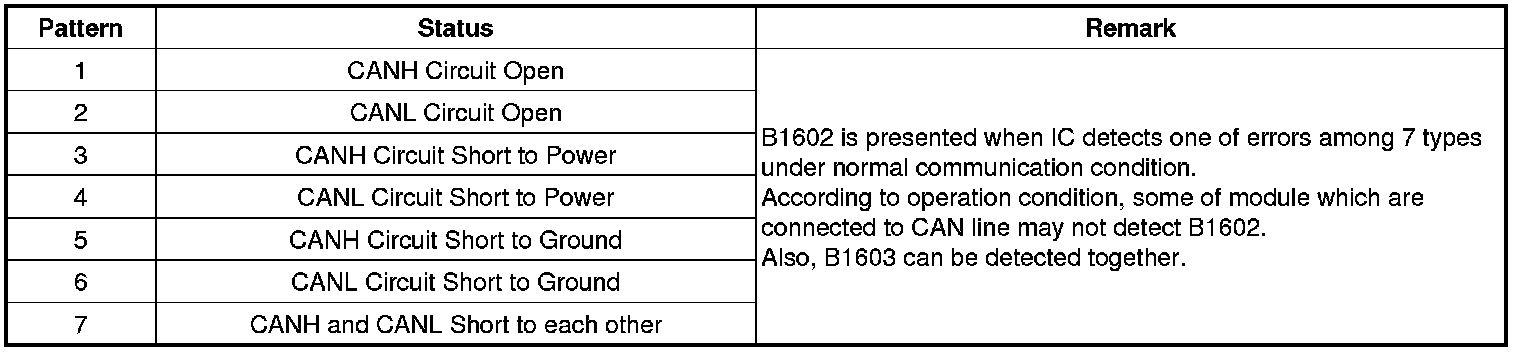

DTC Description

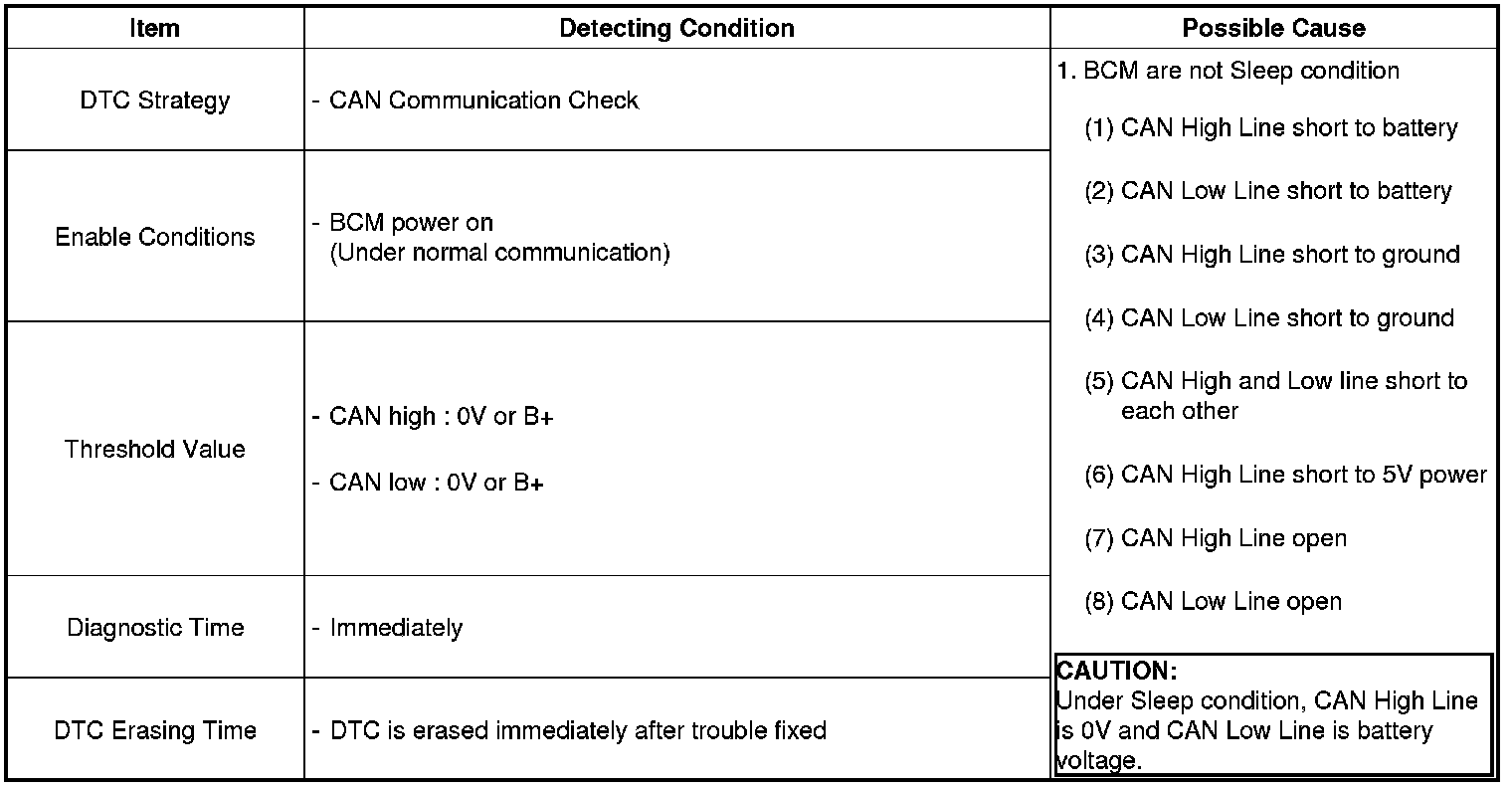

DTC Detecting Condition






Diagnostic Circuit Diagram










Signal Waveform & Data








Fig.1) CAN Low/High Signal Waveform
Fig.2) CAN BUS VOLTAGE LEVEL (LOW SPEED CAN)
