Scantool Diagnostics

Airbag(Event #1)
B1513 Buckle Switch Passenger open or short to Battery - Scantool Diagnostics

Monitor Scantool Data

1. Ignition "OFF", connect scantool.
2. Ignition "ON"& Engine "OFF", select "Current Data" mode.
3. Monitor the "Passenger Buckle Switch status" parameter on the Scantool.

Specification :Passenger Buckle Switch on : Buckled, Passenger Buckle Switch off : Unbuckled

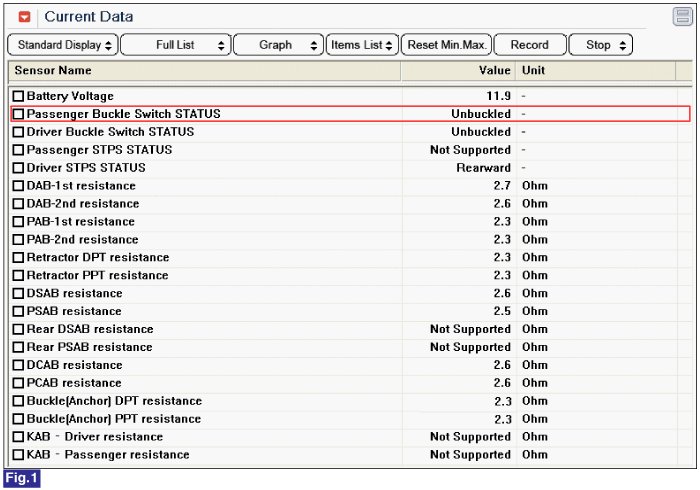

Fig.1) Unbuckled Data

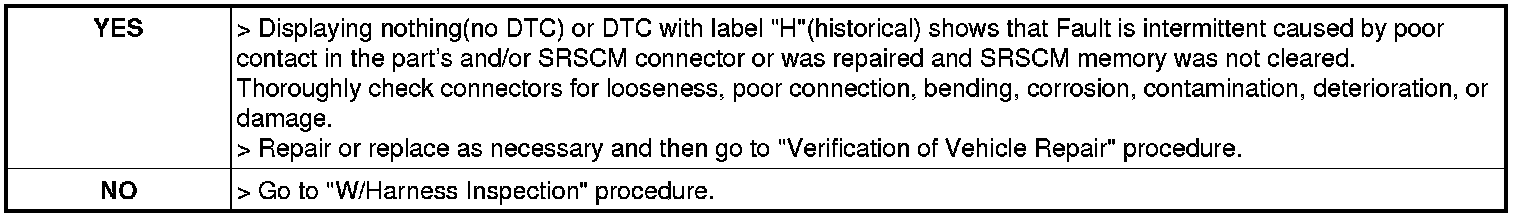

4. Is parameter displayed within specifications?
