Scantool Diagnostics

Airbag(Event #1)
B1511 Buckle Switch Driver open or short to Battery - Scantool Diagnostics

Monitor Scantool Data

1. Ignition "OFF", connect scantool.
2. Ignition "ON"& Engine "OFF", select "Current Data" mode.
3. Monitor the "Driver Buckle Switch status" parameter on the Scantool.

Specification :Driver Buckle Switch on : Buckled, Driver Buckle Switch off : Unbuckled

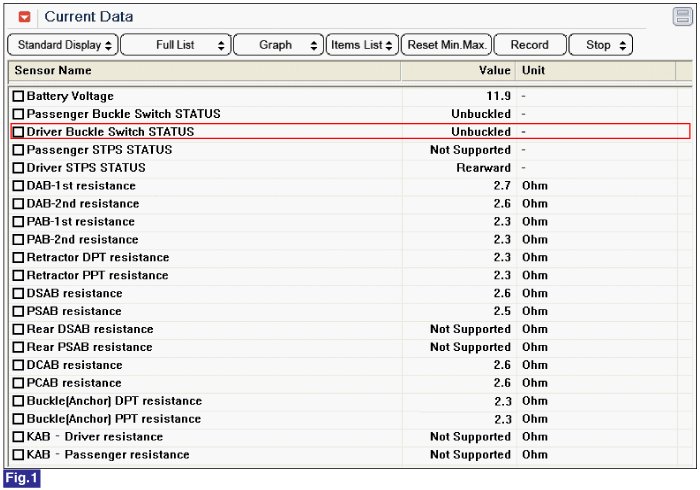

Fig.1) Unbuckled Data

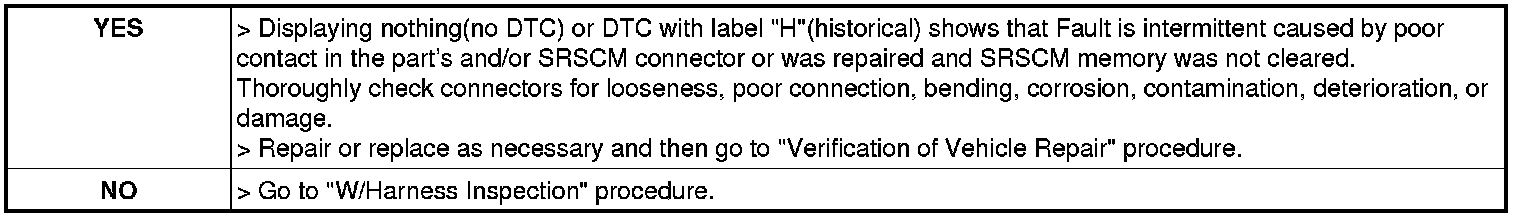

4. Is parameter displayed within specifications?
