General Information

Airbag(Event #1)
B1490 PODS(Passenger Occupant Detecting System) Sensor(Bladder) Defect - General Information

Component Location





General Description

SRSCM receives passenger occupant detection signal which includes passenger weight class from WCS.
SRSCM controls Telltail lamp and passenger airbag whether deploy it or not according to passenger weight class.
SRSCM periodically receives passenger occupant information.
If SRSCM receives communication error or Fault information, SRSCM turns on Airbag warning light and sets DTC.

DTC Description

The SRSCM sets DTC B1322 if there is any fault in Weight Classification System Sensor circuit.

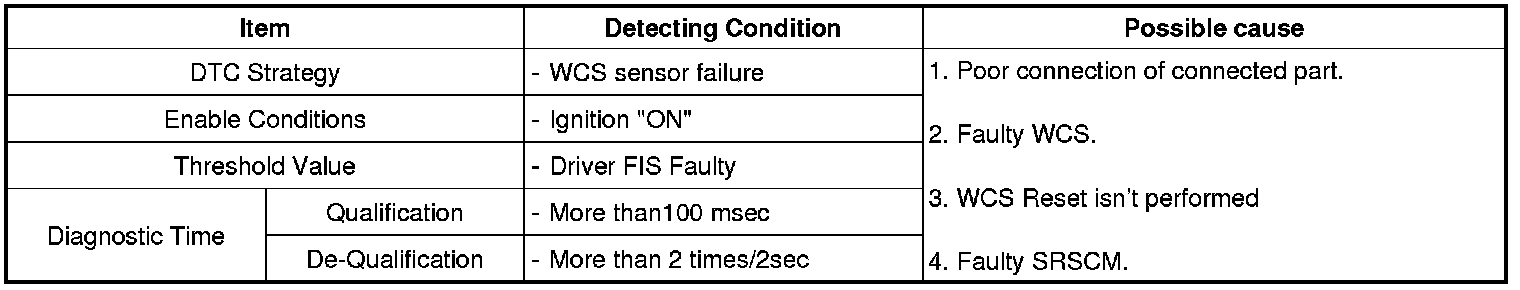

DTC Detecting Condition





Diagnostic Circuit Diagram
