W/Harness Inspection

Airbag(Event #1)
B1482 Driver Airbag Resistance too Low(2nd stage) - Inspection/Repair:_:W/Harness Inspection

Terminal and Connector Inspection

1. Many malfunctions in the electrical system are caused by poor harness and terminals.
Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
2. Thoroughly check shorting bar/shorting bar release pin and connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
3. Has a problem been found?






Squib Circuit Inspection

1. Ignition "OFF".
2. Disconnect (-) terminal cable from battery and wait for 1 minutes or more.
3. Remove the DAB module and connect the dummy and dummy adapter to DAB connector of the clock spring harness connector.

NOTE:
If dummy and dummy adaptor are not able to be prepared, use a known-good DAB or 2Ohms resistor.

WARNING:
Lay Removed DAB facing upward for unexpected air bag deploy.

4. Connect (-) terminal cable to battery and Ignition "ON" & Engine "OFF" and wait for 30 seconds or more.
5. Connect scantool to Data Link Connector(DLC) and clear DTC with scantool and diagnose again.




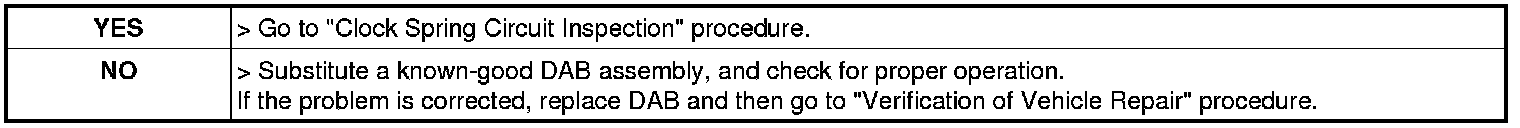

6. Is DTC present problem ?






Clock Spring Circuit Inspection

1. Ignition "OFF".
2. Disconnect the battery (-) terminal cable from the battery and wait at least one minutes.
3. Remove DAB module and disconnect SRSCM connector of the clock spring harness.

WARNING:
Lay Removed DAB facing upward for unexpected air bag deploy.

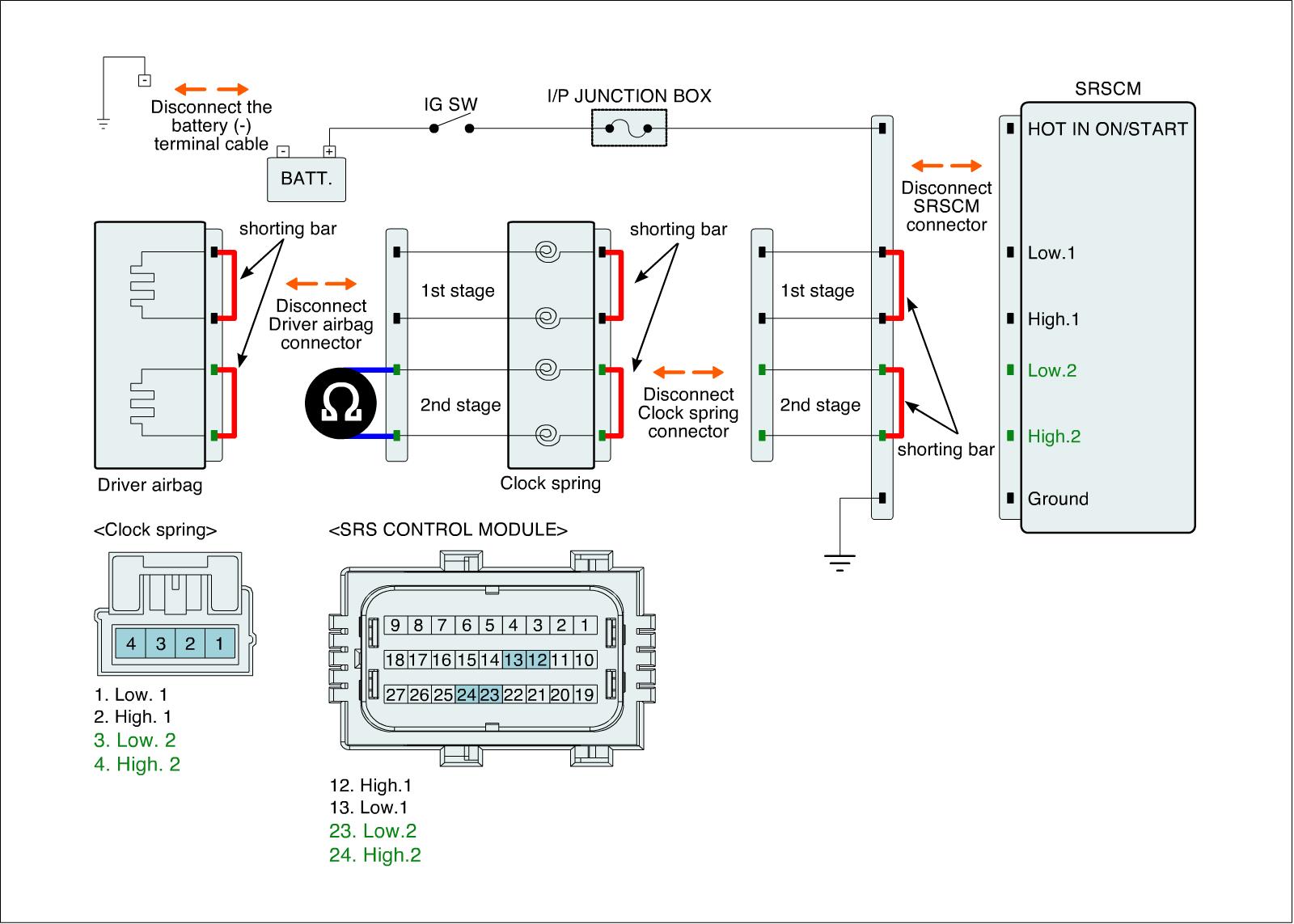

4. Measure resistance between terminal "Low.2" and "High.2" of the Clock Spring harness connector.

Specification :approx. 1 Ohms below




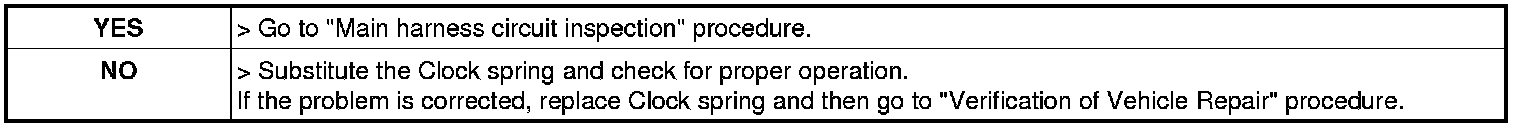

5. Is the measured resistance within specifications?






Main harness Circuit Inspection

1. Ignition "OFF".
2. Disconnect the battery (-) terminal cable from the battery and wait at least one minutes.
3. Remove DAB module and disconnect SRSCM connector of the clock spring harness.

WARNING:
Lay Removed DAB facing upward for unexpected air bag deploy.

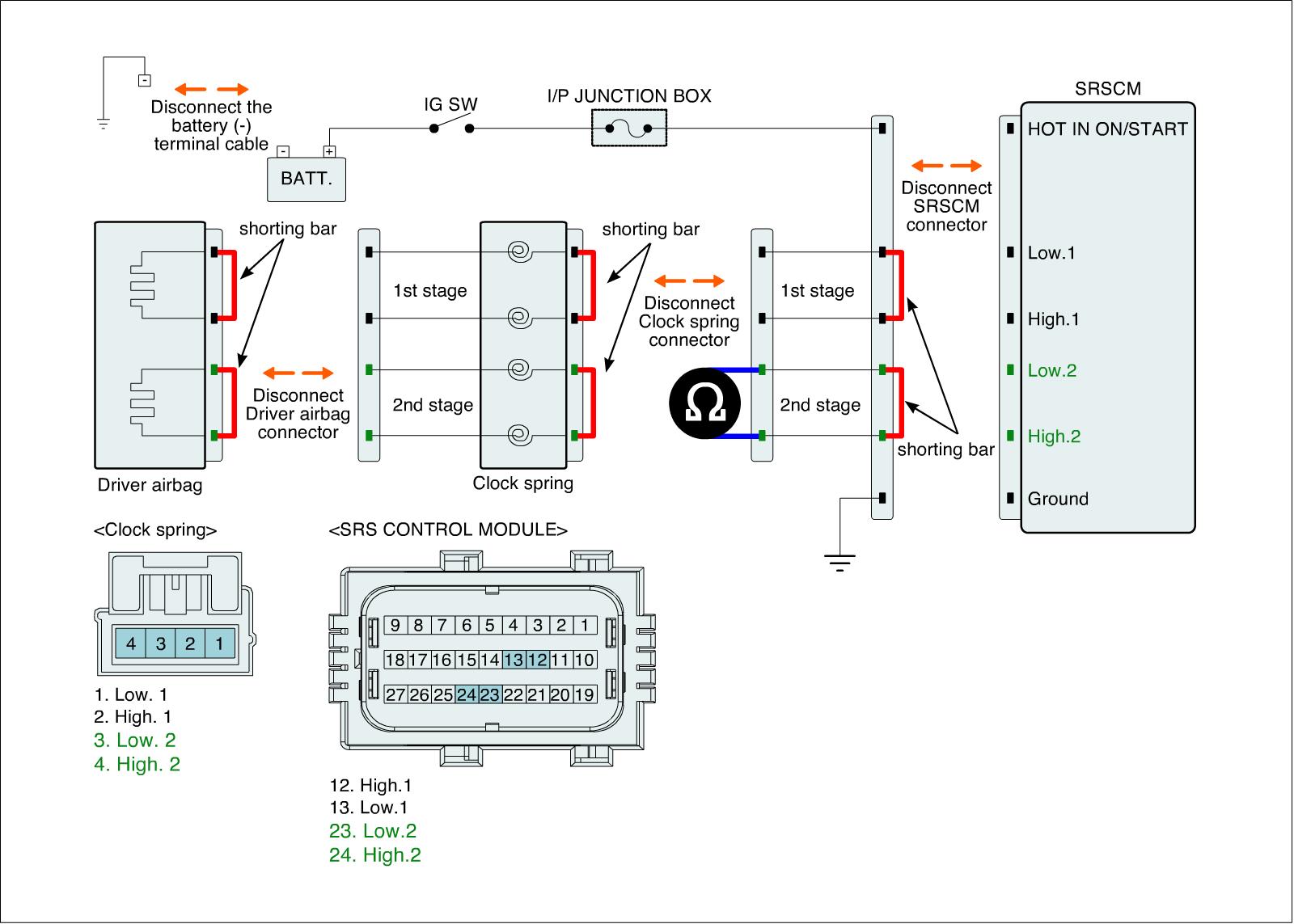

4. Measure resistance between terminal "Low.2" and "High.2" of the DAB harness connector.

Specification :approx. 1 Ohms below




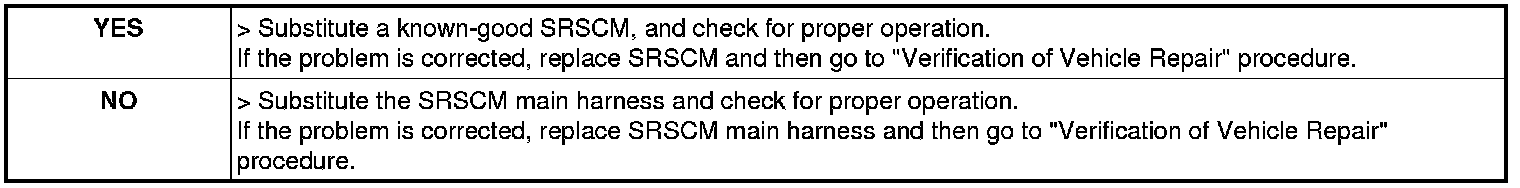

5. Is the measured resistance within specifications?
