W/Harness Inspection

Airbag(Event #1)
B1387 STPS(Seat Track Position Sensor)-Driver Short or Short to Ground - Inspection/Repair:_:W/Harness Inspection

Terminal and Connector Inspection

1. Many malfunctions in the electrical system are caused by poor harness and terminals.
Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
3. Has a problem been found?






Main harness circuit Inspection

1. Ignition "OFF".
2. Disconnect the battery (-) terminal cable from the battery and wait at least one minutes.

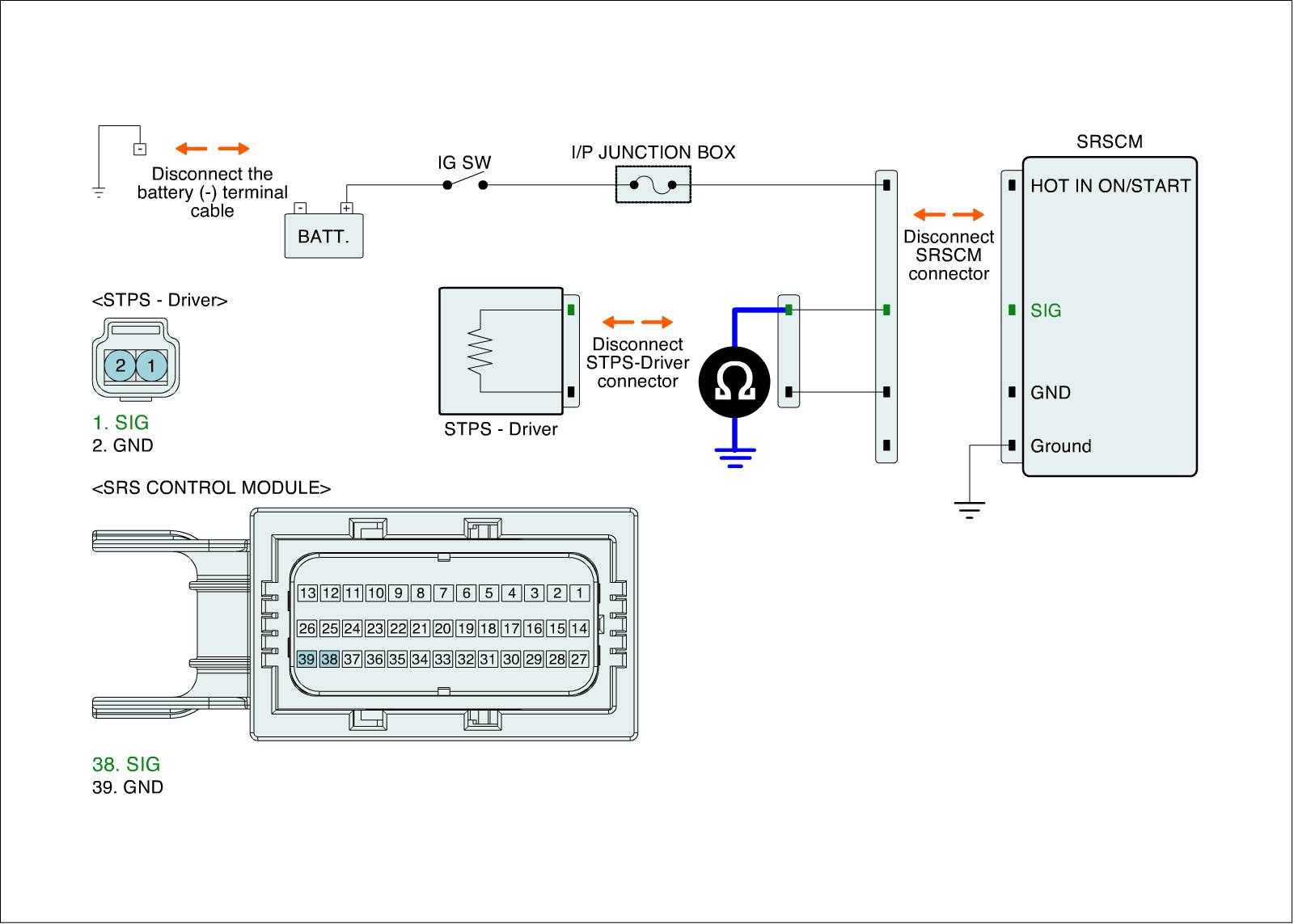

3. Disconnect STPS connector and SRSCM main harness connector.
4. Measure resistance between terminal "High" of the STPS harness connector and chassis ground.

Specification :Infinity

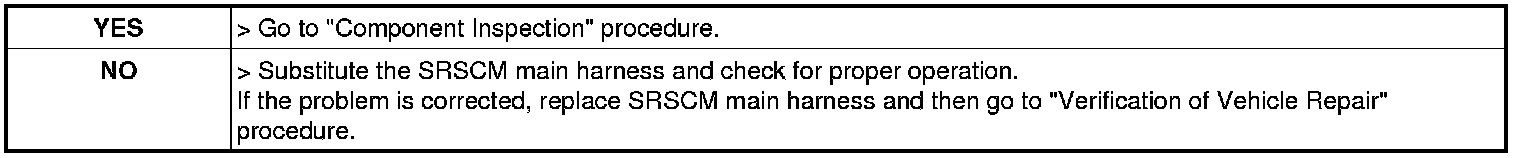

5. Is the measured resistance within specifications?
