Scantool Diagnostics

Airbag(Event #1)
B1387 STPS(Seat Track Position Sensor)-Driver Short or Short to Ground - Scantool Diagnostics

Monitor Scantool Data

1. Ignition "OFF", connect scantool.
2. Ignition "ON"& Engine "OFF", select "Current Data" mode.
3. After driver seat is fully moved to rearward, Monitor the "STPS-Driver Status " parameter on the Scantool.

Specification :Driver seat is fully moved to rear : Rearward, Driver seat is fully moved to front : Forward.




Fig 1) Rearward Data

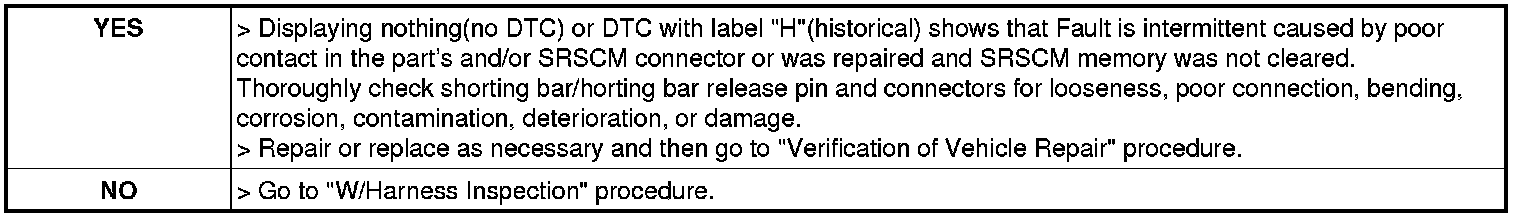

4. Is parameter displayed within specifications?
