Scantool Diagnostics
Airbag(Event #1)
B1367 Pretensioner Front-Passenger Resistance too High - Scantool Diagnostics
Monitor Scantool Data
1. Ignition "OFF", connect scantool.
2. Ignition "ON"& Engine "OFF", select "Current Data" mode.
3. Monitor the "Pretensioner front-Passenger resistance" parameter on the Scantool.
Specification :1.1Ohms< Resistance of Pretensioner front-Passenger < 6.7Ohms
Reference :In a case of an open in the Pretensioner front-Passenger circuit : FAIL
In a case of a short to battery in the Pretensioner front-Passenger circuit: FAIL
In a case of a short to ground in the Pretensioner front-Passenger circuit : FAIL

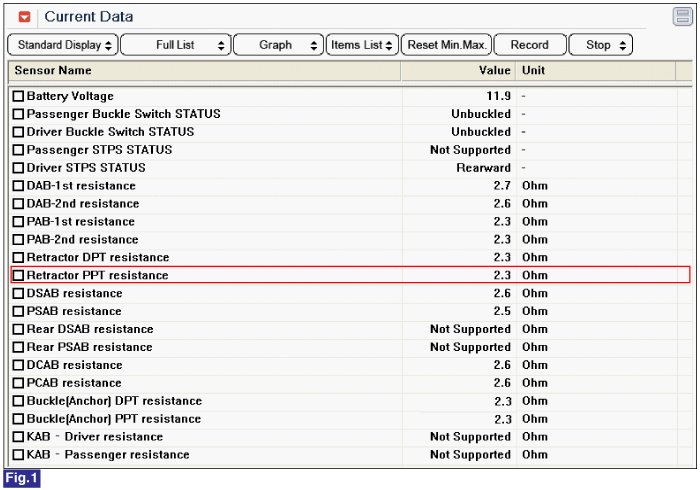

Fig.1) Normal Data

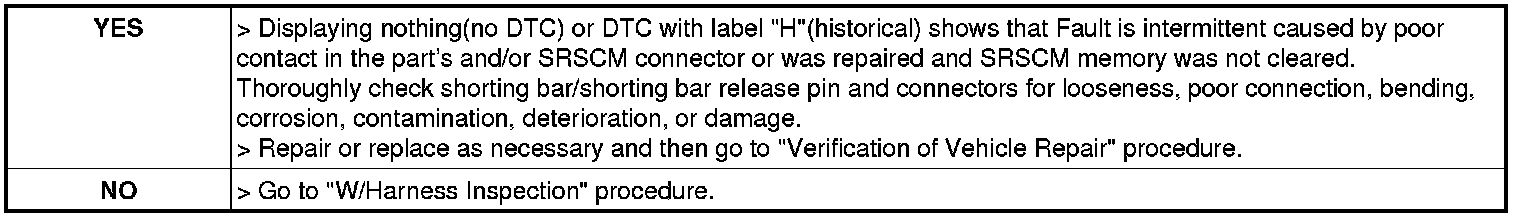

4. Is parameter displayed within specifications?
