Scantool Diagnostics

Weight Classification
B1319 Require Weight Check - Scantool Diagnostics

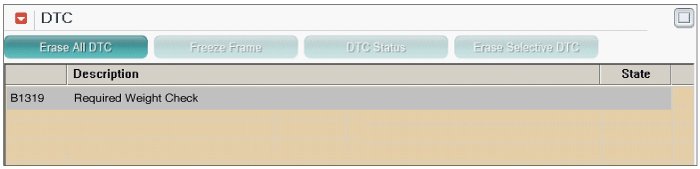

Monitor Scantool Data

1. Ignition "OFF", connect scantool.
2. Ignition "ON"& Engine "OFF", select "Diagnostic Trouble Codes(DTC)" mode.
3. Monitor diagnostic trouble code and present of trouble code.
4. Using a scan tool, clear the DTC.
5. Using a scan tool, Doing WCS Reset
6. Monitor diagnostic trouble code and present of trouble code.

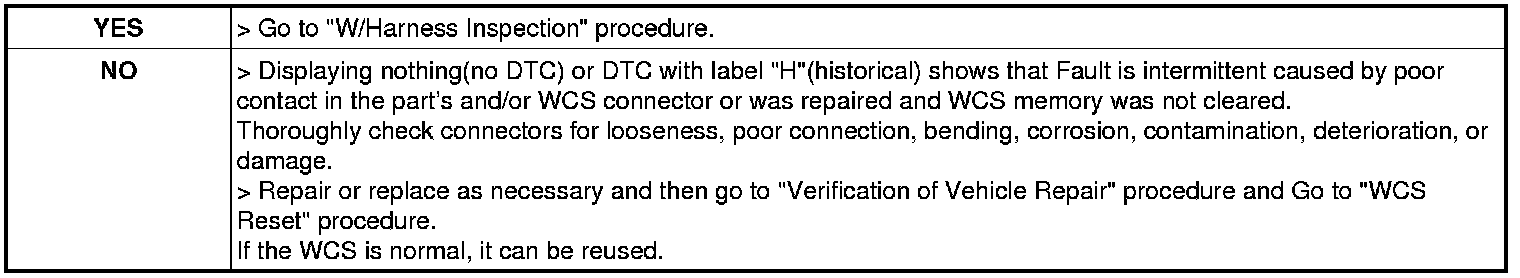

7. Is DTC present problem ?
