Component Inspection

Weight Classification
B1319 Require Weight Check - Inspection/Repair:_:Component Inspection

Component Inspection

1. Ignition "ON" & Engine "OFF" and Using a scan tool, clear the DTC.
2. Doing WCS Reset, using a scan tool
3. Ignition "OFF".
4. Ignition "ON" & Engine "OFF"
5. Check DTC

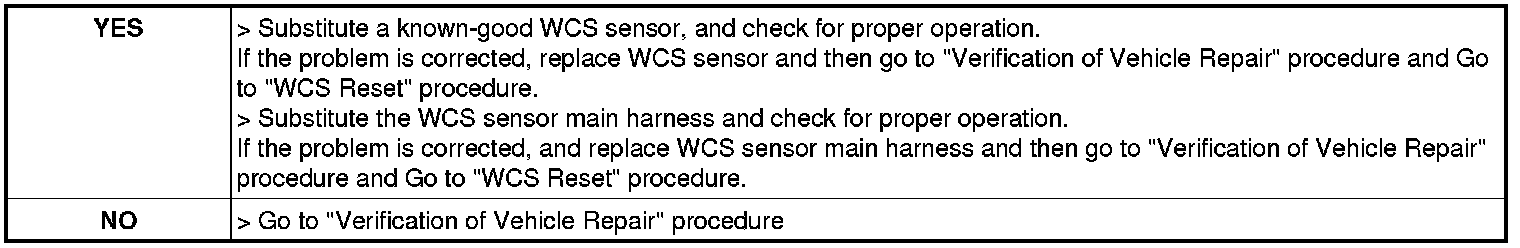

6. Is DTC present problem with active status?






WCS Reset

1. Ignition "OFF", connect scantool.
2. Ignition "ON"& Engine "OFF", select Weight Classification System and select "WCS Reset" mode.
3. You will see comments and current weight measured.
4. Make sure the measure weight is caused by occupant or tools or interference.
5. And then press "ENTER"

















Specification :Approx. - 4.0 kg ~ + 4.0 kg

6. The 'WCS Reset' operation will take 3 - 10 second.
7. Make sure that there should not be vibration or weight adding to the passenger front seat.












8. If the 'WCS Reset' operation is finished successfully, you will see the following screen.








Fig.1) Select System
Fig.2) Weight Classification System Select
Fig.3) Weight Classification System Reset
Fig.4) Weight Classification System Reset 1
Fig.5) Weight Classification System Reset 2
Fig.6) Weight Classification System Reset 3
Fig.7) Weight Classification System Reset 4
Fig.8) Normal Data of WCS
Fig.9) Normal Current Data - EMPTY Data

Specification :Approx. - 4.0 kg ~ + 4.0 kg

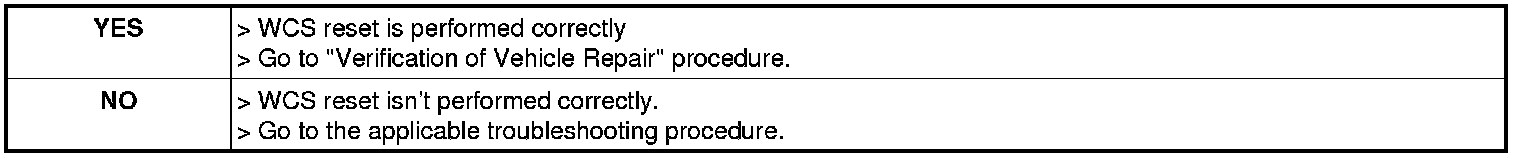

9. Is the displayed parameter the same as the above 9 figure?
