Scantool Diagnostics

Air Conditioner
B1285 Direction Control Motor -AUTO Defog - Scantool Diagnostics

Monitor Scantool data

Actuation Test
1. Connect scantool with diagnostic connector.
2. Warm up the engine to normal temperature after engine start.

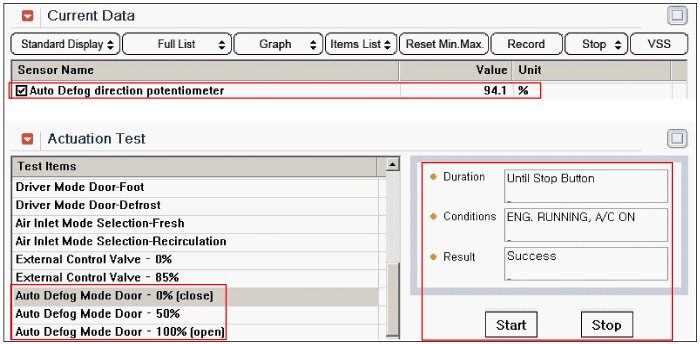

3. Select and monitor"Auto defoger mode actuator" parameter on current data.
4. Perform Actuation Test for "auto defoger actuator -0%(close)/50%/100%(open)" in order.
5. Check that the value of auto defoger mode actuator is changed with performing actuation test.

Specification :0%(close) : About 90%, 50% : About 55%, 100%(open) : About 20%.

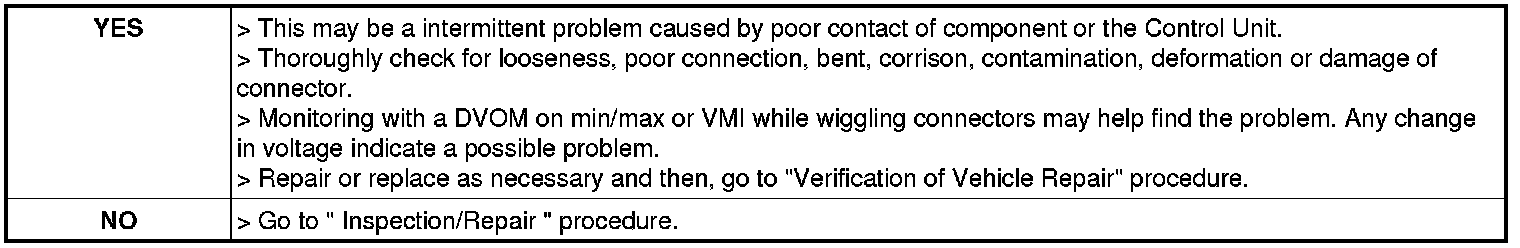

6. Does the value of auto defoger mode actuator follow the specification ?
